Feature:
* Large touch screen + shortcut keys, easy to operate
* Large-capacity polymer lithium battery, with super-long working time
* Intelligent testing, simple use, powerful function
* Media of Memory Card + SD card, with super-large storage capacity of traces
* Able to meet FTTx testing needs
* Several wavelength can be chosen
* Solid casing design, dustproof and shockproof
Item | Description | |

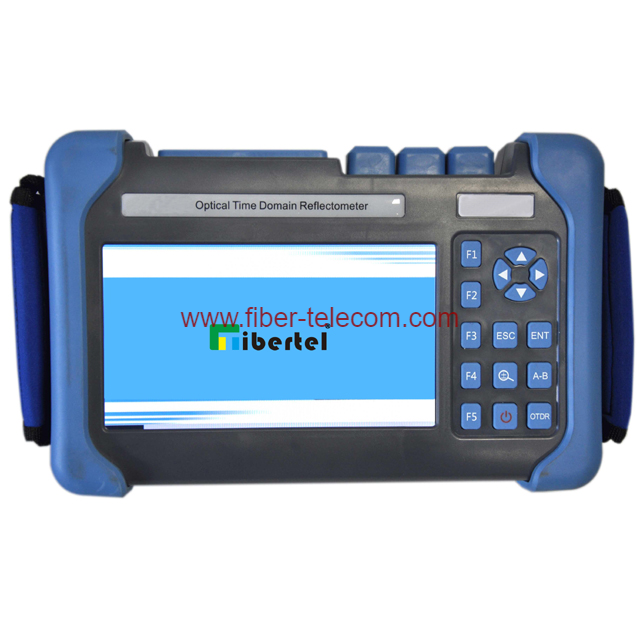

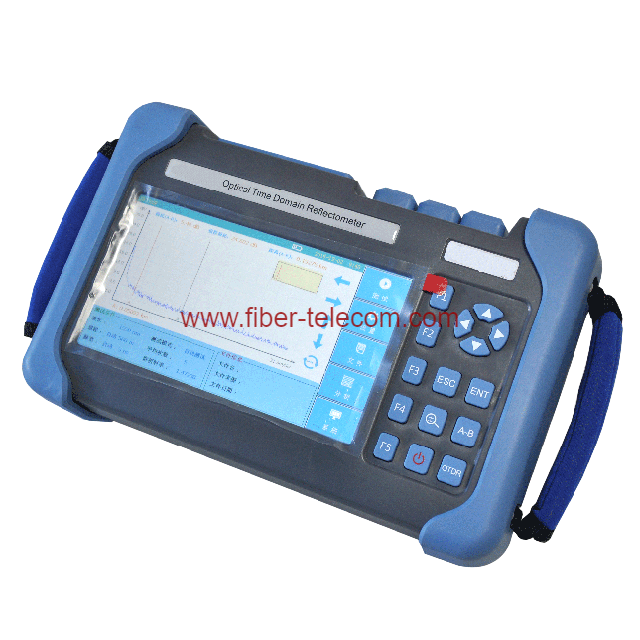

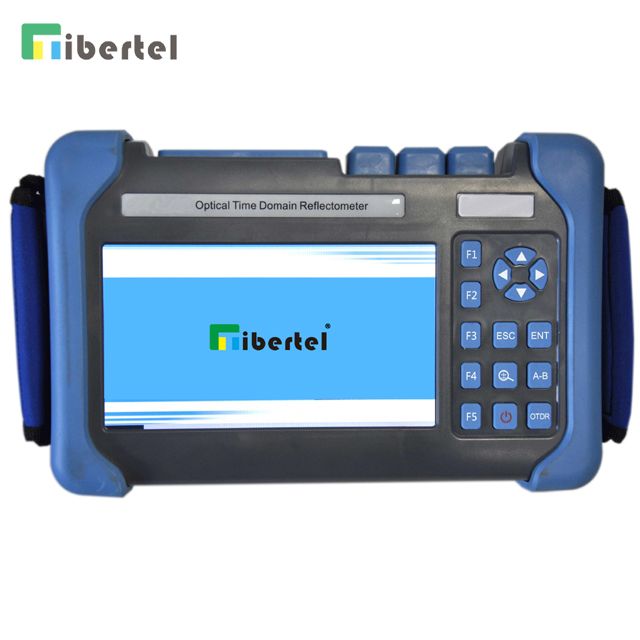

Product Name | Mini-pro Optical Time Domine Reflectormer F | |
Part No. | TJ04A302F | |
Dimension | 253*168*74mm | |
Testing Wavelength | 1310/1550,1310/1490/1550,1310/1550/1625 | |
Dynamic Range | 32/30,67/65,42/40,45/42, 30/28/28, 37/36/36dB | |
Event dead-zone | 0.8-1.5 mtr | |
Attenuation blind -zone | 8 mtr | |
Display | 7"TFTLCD with LED back light | |
Test Range | 100m-240km | |
Dimension | 253*168*74mm | |
Weight | 1.5kgs |
Feature:
* Large touch screen + shortcut keys, easy to operate
* Large-capacity polymer lithium battery, with super-long working time
* Intelligent testing, simple use, powerful function
* Media of Memory Card + SD card, with super-large storage capacity of traces
* Able to meet FTTx testing needs
* Several wavelength can be chosen
* Solid casing design, dustproof and shockproof
Item | Description | |
Product Name | Mini-pro Optical Time Domine Reflectormer F | |
Part No. | TJ04A302F | |
Dimension | 253*168*74mm | |
Testing Wavelength | 1310/1550,1310/1490/1550,1310/1550/1625 | |
Dynamic Range | 32/30,67/65,42/40,45/42, 30/28/28, 37/36/36dB | |
Event dead-zone | 0.8-1.5 mtr | |
Attenuation blind -zone | 8 mtr | |
Display | 7"TFTLCD with LED back light | |
Test Range | 100m-240km | |
Dimension | 253*168*74mm | |
Weight | 1.5kgs |
Item | Description | |

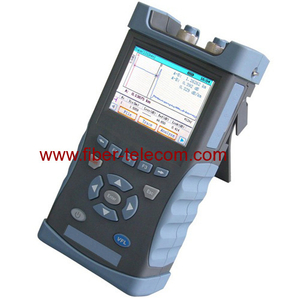

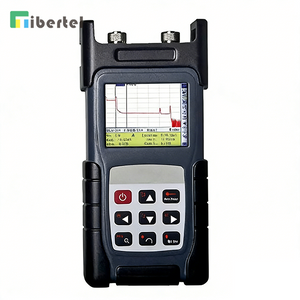

Product Name | Optical Time Domain Reflectometry Mini-Pro OTDR | |
Wavelength | 1310nm/1550nm±20nm | |
Fiber Type | G.652 SM Fiber | |
Dynamic Range | 24dB/22dB | |
Event Blind Zone | 3mtr | |
ATT Blind Zone | 8mtr | |
Test Range | 500m~60km | |
Pulse Width | 3ns~10us | |
Ranging Accuracy | ±(1m+Sampling Interval +0.005%×Test Distance) | |
Loss Accuracy | ±0.2dB/dB | |
Sampling Points | 16k~128k | |
Sampling Resolution | 0.05m~8m | |
Reflection Accuracy | ±3dB | |
Data Storage | Internal:≥600;External:TF Card | |
Laser Safety Level | Class Ⅱ level | |
File Format | SOR Standard File Format | |
Connector | FC/UPC(Interchangeable SC、ST)/SC/APC as optional |
Item | Description | |
Product Name | Optical Time Domain Reflectometry Mini-Pro OTDR | |
Wavelength | 1310nm/1550nm±20nm | |
Fiber Type | G.652 SM Fiber | |
Dynamic Range | 24dB/22dB | |
Event Blind Zone | 3mtr | |
ATT Blind Zone | 8mtr | |
Test Range | 500m~60km | |
Pulse Width | 3ns~10us | |
Ranging Accuracy | ±(1m+Sampling Interval +0.005%×Test Distance) | |
Loss Accuracy | ±0.2dB/dB | |
Sampling Points | 16k~128k | |
Sampling Resolution | 0.05m~8m | |
Reflection Accuracy | ±3dB | |
Data Storage | Internal:≥600;External:TF Card | |
Laser Safety Level | Class Ⅱ level | |
File Format | SOR Standard File Format | |
Connector | FC/UPC(Interchangeable SC、ST)/SC/APC as optional |
