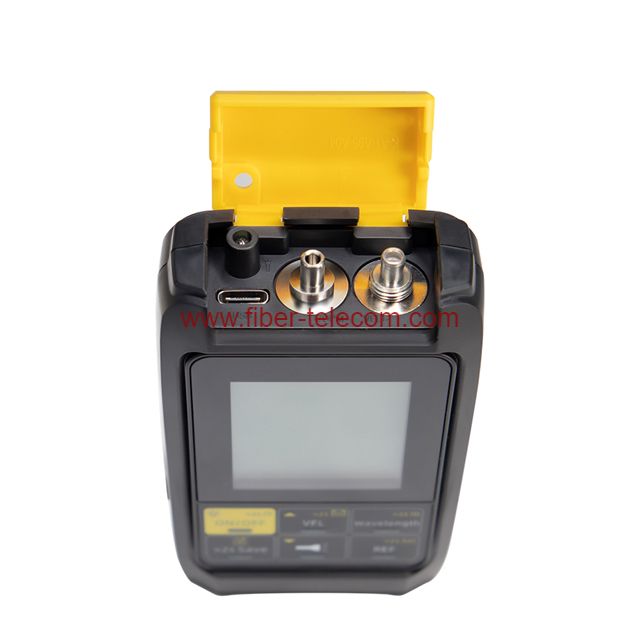

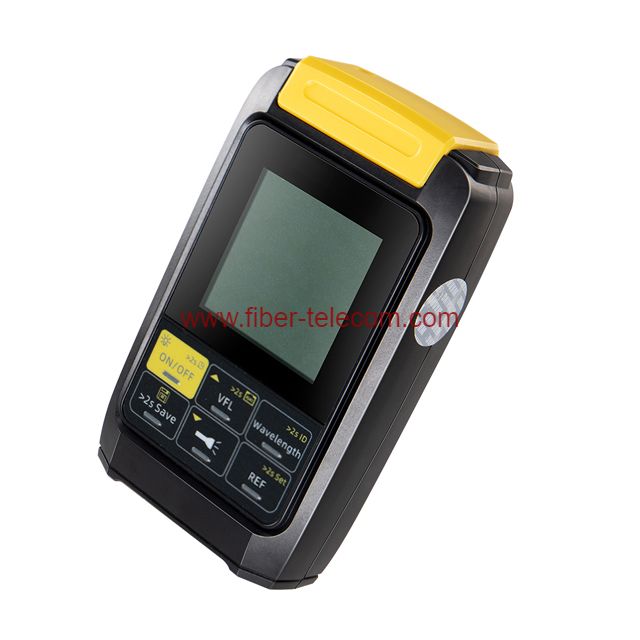

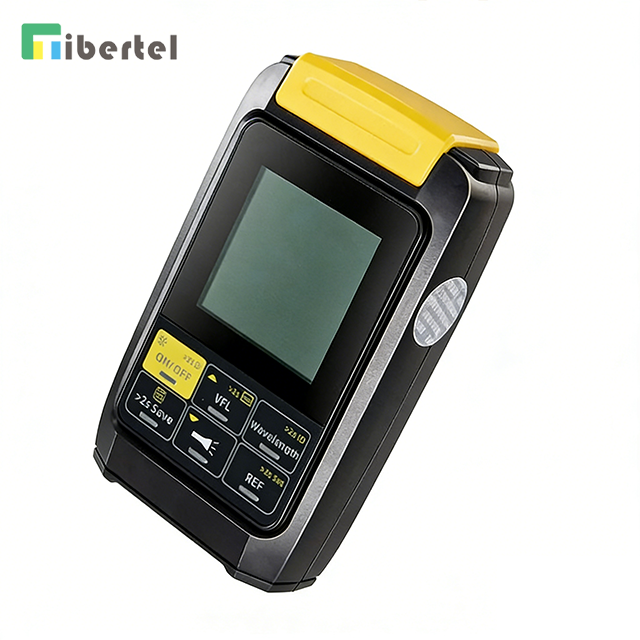

Product Name | High Precision Mini OPM |
Part No. | TJ04A20xV |
PD Type | InGaAs |
OPM Connector | 2.5mmUniversal connector |
Calibrated Wavelengths | 850/1300/1310/1490/1550/1625nm |
Display Range | T-70~+10dBm;C-50~+30dBm |
Resolution | 0.01dB |
Accuracy* | +0.2dB |
Modulation Test | 270/330/1k/2kHz |
VFL Connector | 2.5mmUniversal connector |
VFL Power | 1mW,20mW.30mW |
LED | Yes |
RJ-45 Cable Test | Yes |
Interface | Type-C |
Battery | Lithium battery |
Storage Temperature | -20~60℃， <90%RH |
Operating Temperature | -10~50°c，<90%RH |
Weight | 95g |
Size | 100mmx59mmx28mm |
