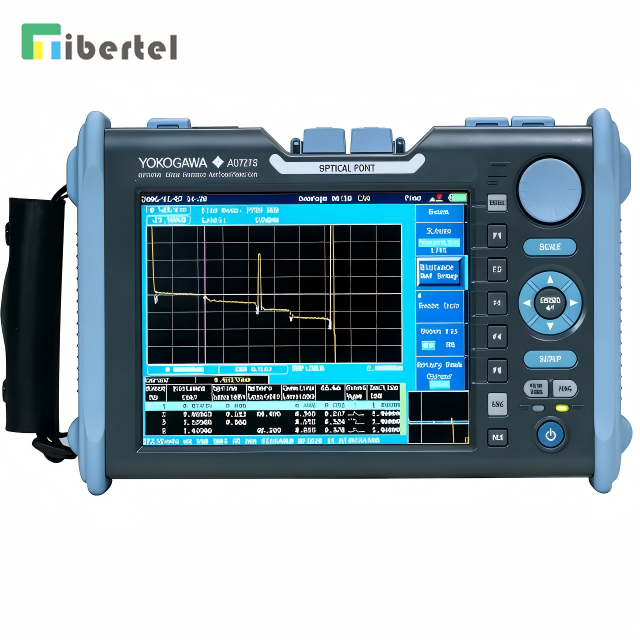

YOKOGAWA OTDR Optical Time Domain Reflectometer
Home » Products » FTTx Solutions » Test equipment » YOKOGAWA OTDR Optical Time Domain Reflectometer
Share to:

YOKOGAWA OTDR Optical Time Domain Reflectometer

Delivery Date:7-working daysBrand Name:Yokogawa
Part No.:AQ7275Brand:Yokogawa
Display Monitor:8.4 inch (640*480 dots)Application fibers:SM & MM
Distance range (SM):500m ~400kmDistance range (MM):500m ~100km
Working Temp.:0~40CDimension:287*182*75mm
N.Weight:2.8kgsOrigin:Japan
Model735032735033735037*12735040
Wavelength1310/1550±25nm1310/1550±25nm1310/1550±25nm
    1650±5nm*1, ±10nm*2
1310/1550±25nm850/1300±30nm
Application fiberSM   (ITU-T G.652)GI   (50/125, 62.5/125um)
Distance range500m,   1km, 2km, 5km, 10km, 20km, 50km, 100km, 200km, 300km, 400km500m,   1km, 2km, 5km, 10km, 20km, 50km, 100km
Pulse width *33 ns,   10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns,    1 us, 2 us, 5 us, 10 us, 20 us10   ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns,    1 us, 2 us, 5 us*7
Dynamic range34/32   dB *440/38   dB *440/38/30   dB *440/38   dB *422.5/24   dB *8, 10
Event dead zone *110.8m   *50.8m   *50.8m   *50.8m   *52m*9,   10
Attenuation dead zone *6,117/8   m(typ)7/8   m(typ)7/8   m(typ)7/8   m(typ)7/10   m(typ) *10
