Pen-type visual fault locator (VFL)
Home » Products » FTTx Solutions » Fiber test equipment » Pen-type visual fault locator (VFL)

loading

Share to:
sharethis sharing button

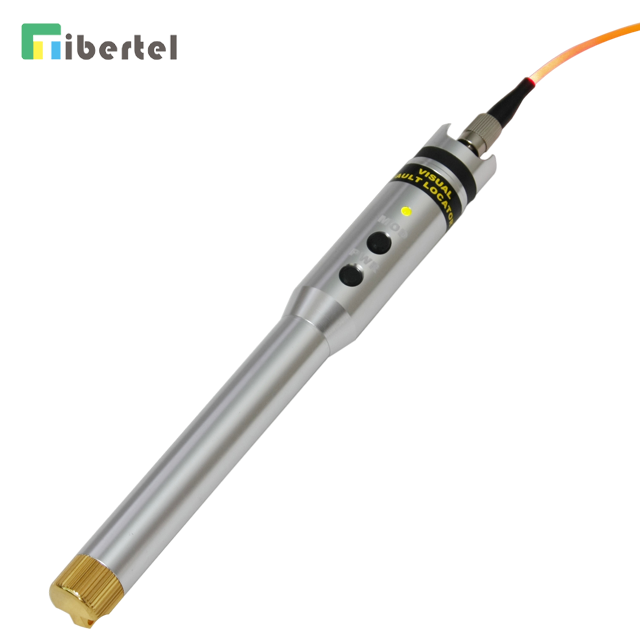

Pen-type visual fault locator (VFL)

  • TJ04A1101

Availability:
Delivery Date:5 daysBrand Name:T&J
Model:JT3105PWavelengths(nm):650±10nm
Fiber Model:SM,MMOutput Power:1mw ~20mw
Pulse Frequency:2~3HzEmitter Type:FP-LD
Optical Connector:FC/ Universal 2.5mm adaptorPower Supply:2pcs AA alkaline batteries
Dimension(mm):¢25x206Weight without battery (g):106g

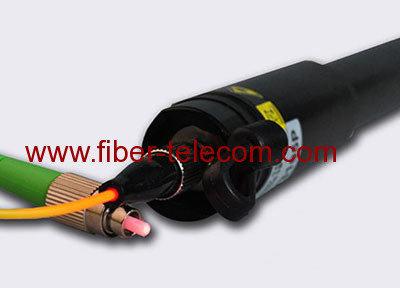

The TJ04A1101 Pentype VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in optical network. It includes:

  • Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.

  • Finding the faults of OTDR dead zone

  • End-to-end visual fiber identification

Features:

  • 2.5mm universal connector, for 1.25mm connectors,

  • lFC (Male)-LC (Female) convertor can be provided on requests.

  • Operates either in CW or Pulsed

  • Constant output power

  • Lower Battery warning

  • Long battery life (up to 60 hours)

  • Crash-proof and dust-proof design for laser head

  • Laser case ground design prevents ESD damage

  • Burning testing to ensure the reliability.

  • Portable and rugged, easy to use

  • Guarantee to CE standards include EMC, EMI, ROHS



Specifications:

Type

JT3105 / TJ04A1101 Pen-type Visual Fault Finder

Central Wavelength

650nm±10nm (635nm   can be required on request)

Emitter Type

FP-LD

Output Power

Optional choice for   1mw, 3mw, 5mw,10mw or on actual needs

Optical Connector

2.5mm universal connector

For 1.25mm connectors, FC   (Male)-LC (Female) convertor

can be optional on   customer requests

Operating Model

Both CW and Pulse   available

Pulse Frequency

2~3Hz

Power Supply

2  AA alkaline batteries

Battery Operating Time

650nm@1mw ≥65hour

650nm@3mw ≥50hour

650nm@10mw≥15hour

Test with Panasonic   LR6 AA ALKALINE battery

Operating Temperature

-10~+45 (℃)

Storage Temperature

-40~+70 (℃)

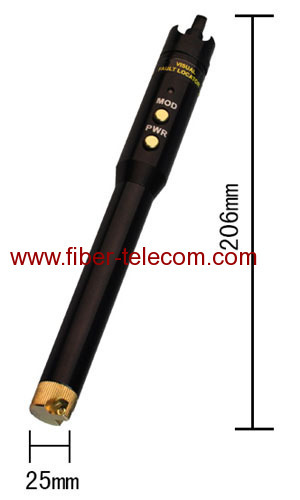

Dimension (mm)

¢25x206

Weight without   battery (g)

106

Remark: Colors can be customized on request when meets certain qty!



Standard Packages:

MODEL

INCLUDES

TJ04A1101

Main   Unit (Original color), 2pcs Alkaline battery, User Manual, Cotton swabs and   Soft Carrying case.
