Handheld Optical Time Domain Reflectometry (OTDR)
Home » Products » FTTx Solutions » Test equipment » Handheld Optical Time Domain Reflectometry (OTDR)
Share to:

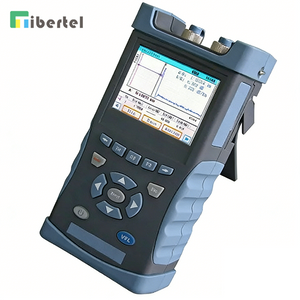

Handheld Optical Time Domain Reflectometry (OTDR)

Delivery Date: 5 days Brand Name: T&J
Model: JT3302 Dynamic Range(dB): 32/32 or 30/28
Fiber Type: Single Mode Fiber Wavelength(nm) (±20nm): 1310/1550
Display Type: colorful Emitter Type: LD
Connector Type: FC/PC(InterchangeableSC, ST) Measurement Time: 15s, 30s, 1min, 2min, 3min
Attenuation Detect Accuracy: ±0.05 dB/ dB Reflection Detect Accuracy: ±4 dB

Optical Time Domain Reflectometry - OTDR


Profile:

1.   Quick start :< 5 seconds

2.   Unique hotkey design: Key operation integrated hotkey function ,fast positioning and analysis of events

3.   USB/RS-232 data interface

4.   1000 test records storage

5.   Optimization design of power supply:Built-in NiMH rechargeable battery charge once can support 8 hours measurement

6.   Multiple languages: CN/EN/DE/FR/RU/ES/PT/KR/VN

7.   Dust-shock proof (2m drop test)

8.   With 650 nm visible light source(For A type)

9.   CE, FCC, FDA certificates

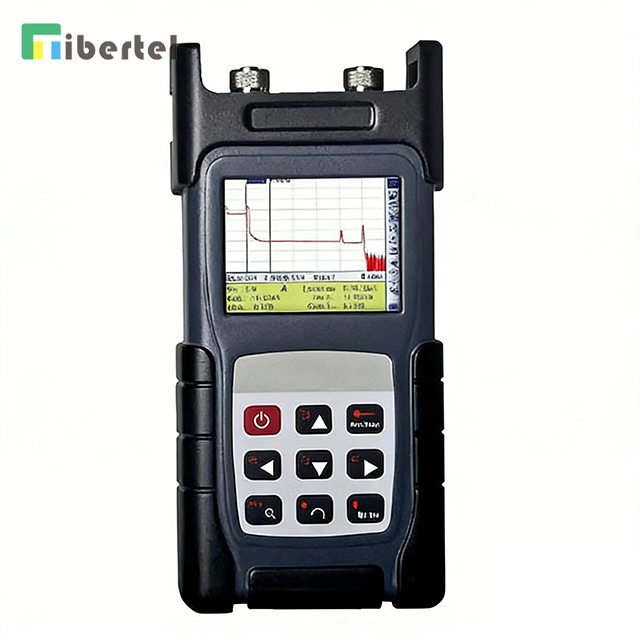

JT3302 OTDR product shows:

Front view of JT3302 OTDR



Side view of JT3302 OTDR---



Supporting Port view of JT3302 Optical Time Domain Reflectometry---




Live Optical Signal Check Function

To have live Optical Signal Check Function,before a test pulse, First check test whether any of the optical fiber live communication optical signals and display the results.It can effectively protect test instrument and communications equipment.

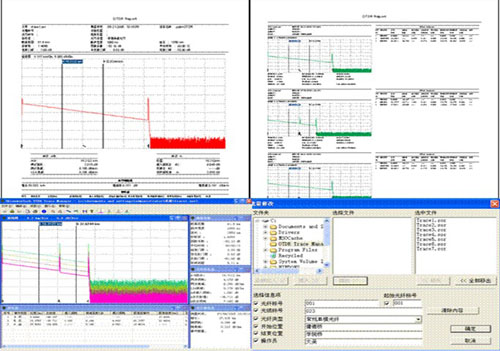

Complete software support





  • Single page single tracing line or single page more tracing line can choose the print mode;

  • Batch change and batch print function;

  • Waveform difference contrast function;

  • Can be in the same window open multiple tracing line at the same time,the differences between the tracing line in the same window display and more easily compare such as optical fiber aging caused by the reasons changing parameters;

  • Bidirectional testing function.



Specifications:

Type

JT3302A

JT3302B

Dynamic Range(dB)

32/32

30/28

Fiber  Type

Single Mode Fiber

Wavelength(nm) (±20nm)

1310/1550

Display    Type

Colorful

Emitter    Type

LD

Connector    Type

FC/PC(InterchangeableSC, ST)

Measurement    Time

15s,30s,1min,2min,3min

Attenuation zone

12m

18m

Event dead zone

2.5m

5m

Distance Measurement Accuracy

±(1 m   + 5×10-5×measurement   distance + sample space)

Attenuation Detect Accuracy

±0.05 dB/ dB



Reflection Detect Accuracy

±4   dB

Date    storage

1000   the test curve

Date    transmission

RS-232/USB

VFL output power(dBm)

 ≥-3

VFL measurement distance (km)

5

Power Supply

NiMH chargeable battery/ AC   adapter

Operating Temperature

0℃ ~ 50℃

Storage Temperature

-20℃ ~ 70℃

Relative Humidity

0~95%(non-condensing)



Standard Package Includes:

Instrument, FC/PC connector, NiMH battery, Trace Manager software CD, Data cable (USB/RS-232), AC adaptor,

Soft carrying case, Warranty card, CE certificate, Certificate of calibration, Quick reference guide.


JT3302 Handheld Optical Time Domain Reflectometry (OTDR)
