Mini optical light source

  • TJ04A1200
Delivery Date:in stockBrand Name:T&J
Model:TJ04A1200Wavelengths(nm):1310 or 1550
Emitter Type:FP-LDOuput Power(dBm):-7~-6
Spectral Width(nm):<=10Output Stability:±0.05dB/15mins;  ±0.1dB/ 8hours
Optical Connector:FC/ universal adaptorDimension(mm):112x60x16.5
Weight (g):66Origin:China

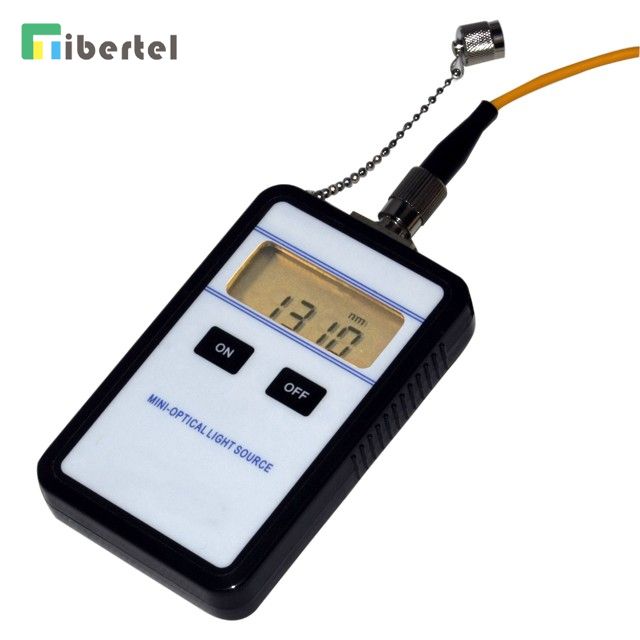

TJ04A1200 mini optical light source is the most rugged small size instrument in the industry. It integrates super small size and  strong function in one unit. With 3 pieces of 1.5V alkaline batteries, it can work continuously for more than 40 hours. The total weight is only 110g. Together with the JT3205 Mini optical power meter, it provides an excellent solution for fiber optic network and for field work.


Features:

  • High stability of the output power

  • Economic type, easy to use

  • Matched with the JT3205 mini power meter, it constitutes the smallest optical loss test kit, perfect for field testing



Applications:

Maintenance in Telecom Maintenance CATV

Fiber Optic Lab Testing

Other Fiber Optic Measurements


Specifications:

 Type

JT3110  /  TJ04A1200

 Wavelengths(nm)

1310 or 1550

 Emitter Type

FP-LD

 Ouput Power(dBm)

-7~-6

 Spectral Width(nm)

≤10

 Output Stability

±0.05dB/15mins;  ±0.1dB/ 8hours

 Optical Connector

FC/PC

 Power Supply

3pcs 1.5V alkaline   batteries

 Battery operating time(hour)

40

 Operating Temperature(℃)

-10~+60

 Storage Temperature(℃)

-25~+70

 Dimension(mm)

112x60x16.5

 Weight without battery (g)

66

 Recommendation

 JT3110 Handheld Light Source is designed for mini portfolio   with JT3205 Optical Power   Meter for measuring

 optical loss on both single mode and   multi mode fiber cable.



Standard Packages:

MODEL

INCLUDES

TJ04A1200

TJ04A1200   Optical Light Source, Alkaline battery, User Manual, Cotton swabs and   Protective Holster.
