| Delivery Date: | 5 days | Brand Name: | T&J |
|---|---|---|---|
| Model: | JT3212B | Detector: | InGaAs |
| Calibrated Wavelength(nm): | 850,1300,1310,1490,1550,1625 | Resolution(dB): | 0.01 |
| Optical Connector: | FC(interchangeable SC,ST) / as well as 2.5mm universal | Power Supply: | Alkaline Battery / AC adaptor |
| Operating Temperature(C): | -10 ~ +60 | Dimension(mm): | 210*115*55 |
| Weight(g): | 500 | Origin: | China |
| Delivery Date: | 5 days | Brand Name: | T&J |
|---|---|---|---|
| Model: | JT3212B | Detector: | InGaAs |
| Calibrated Wavelength(nm): | 850,1300,1310,1490,1550,1625 | Resolution(dB): | 0.01 |
| Optical Connector: | FC(interchangeable SC,ST) / as well as 2.5mm universal | Power Supply: | Alkaline Battery / AC adaptor |
| Operating Temperature(C): | -10 ~ +60 | Dimension(mm): | 210*115*55 |
| Weight(g): | 500 | Origin: | China |

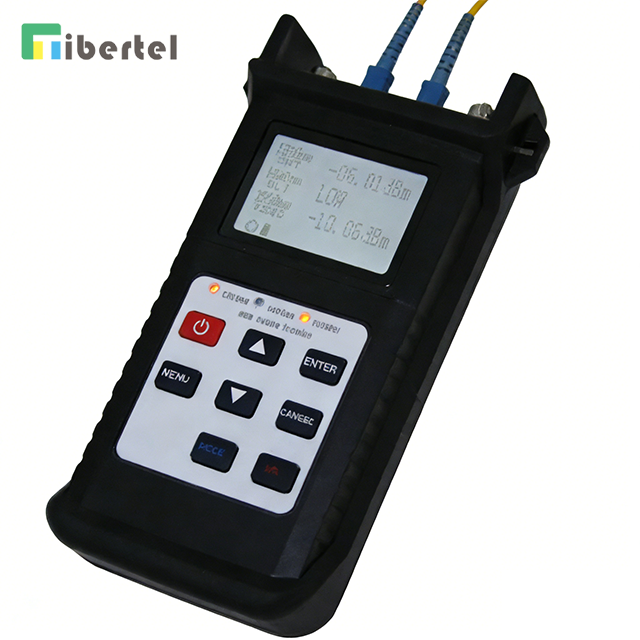

JT3212B PON Optical Power Meter is an upgraded version of JT3212A PON power meter. It aims at the FTTx application and maintenance which not only can be used to test and estimate the PON signals at the same time, but also the normal power measurement and fault identification. It is a useful, essential and ideal tool for the construction and maintenance of the PON projects.
Features:
Providing simultaneous measurement at all three wavelengths (1490nm, 1550nm&1310nm )
Burst mode measurement at 1310nm wavelength
Large LCD screen with backlight function.10 minutes Auto-off function
Six calibration wavelength available when tested as Normal OPM(850,1300,1310,1490,1550&1625nm)
Added VFL Function for quick and efficient fault identification
Data upload via USB cable
1000 storage test records
10 different threshold sets
3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or Fail
Added User self-calibration function in software which used to calibrate the PON module or set the threshold value
Added Factory Default function in software which enable all the customersˇ setting back to the factory setting
Specification PON module:
Item | Specifications | |
1310nm upstream measurement | ||
Pass zone (nm) | 1260~1360 | |
Isolation @1490/1550nm(dB) | >40 | |
Measurement Range (dBm) | -40~+10 | |
1490nm downstream measurement | ||
Pass zone (nm) | 1470~1505 | |
Isolation @1550nm(dB) | >30 | |
Isolation @1310nm(dB) | >40 | |
Measurement Range (dBm) | -40~+10 | |
1550nm downstream measurement | ||
Pass zone (nm) | 1535~1570 | |
Isolation @1490nm(dB) | >40 | |
Isolation @1310nm(dB) | >40 | |
Measurement Range (dBm) | -40~+20 | |
Measurement Accuracy | ||
Connatural Uncertainty (dB) | ±0.5 | |
Linearity (dB) | ±0.1 | |
Passing through insertion Loss (dB) | <1.5 | |
General Information | ||
Display | LCD, Resolution is : 128*64 | |
Measurement Unit | DBm, dB and xW | |
Resolution | 0.01dB | |
Fiber Type | 9/125um | |
Input Power Range | DC 3.3V~5.5V | |
Power Supply | 3AA 1.5V battery | |
Working Hours (hr) | 90 without backlight | |
Operating Temperature | -10℃ ~ +60℃ | |
Storage Temperature
| -25℃ ~ +70℃ | |
Dimensions | 210*115*55 | |
Weight (without batteries) g | 500 | |
Normal Optical Power Meter Module
Measurement Accuracy | |
Connatural uncertainty(dB) | ±0.25 |
Linearity(dB) | ±0.1 |
Measurement Range(dBm) | -70°+6 or -50~+26 |
General Information | |
Measurement Unit | dB/dBm |
Resolution (dB) | 0.01 |
Calibration Wavelength(nm) | 850,1300,1310,1490,1550,1625 |
Detector Type | InGaAs |
Optical Connector | FC/SC/ST Interchangeable |
Fiber Type | 9/125um |
Working Hours (hr) | 100 without backlight |
2.3 VFL Module
Output Power(mW) | 1mw |
Wavelength(nm) | 650 |
Fiber Type | SM, MM |
Modulation Frequency (Hz) | 2 |
Optical Connector | FC/SC/ST Interchangeable |
Standard Packages:
MODEL | INCLUDES |
JT3212B | JT3212B PON Power Meter, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, User Manual and Cotton Swabs, USB Cable, Rigid carrying case can be optional. |
JT3212B PON Optical Power Meter is an upgraded version of JT3212A PON power meter. It aims at the FTTx application and maintenance which not only can be used to test and estimate the PON signals at the same time, but also the normal power measurement and fault identification. It is a useful, essential and ideal tool for the construction and maintenance of the PON projects.
Features:
Providing simultaneous measurement at all three wavelengths (1490nm, 1550nm&1310nm )
Burst mode measurement at 1310nm wavelength
Large LCD screen with backlight function.10 minutes Auto-off function
Six calibration wavelength available when tested as Normal OPM(850,1300,1310,1490,1550&1625nm)
Added VFL Function for quick and efficient fault identification
Data upload via USB cable
1000 storage test records
10 different threshold sets
3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or Fail
Added User self-calibration function in software which used to calibrate the PON module or set the threshold value
Added Factory Default function in software which enable all the customersˇ setting back to the factory setting
Specification PON module:
Item | Specifications | |
1310nm upstream measurement | ||
Pass zone (nm) | 1260~1360 | |
Isolation @1490/1550nm(dB) | >40 | |
Measurement Range (dBm) | -40~+10 | |
1490nm downstream measurement | ||
Pass zone (nm) | 1470~1505 | |
Isolation @1550nm(dB) | >30 | |
Isolation @1310nm(dB) | >40 | |
Measurement Range (dBm) | -40~+10 | |
1550nm downstream measurement | ||
Pass zone (nm) | 1535~1570 | |
Isolation @1490nm(dB) | >40 | |
Isolation @1310nm(dB) | >40 | |
Measurement Range (dBm) | -40~+20 | |
Measurement Accuracy | ||
Connatural Uncertainty (dB) | ±0.5 | |
Linearity (dB) | ±0.1 | |
Passing through insertion Loss (dB) | <1.5 | |
General Information | ||
Display | LCD, Resolution is : 128*64 | |
Measurement Unit | DBm, dB and xW | |
Resolution | 0.01dB | |
Fiber Type | 9/125um | |
Input Power Range | DC 3.3V~5.5V | |
Power Supply | 3AA 1.5V battery | |
Working Hours (hr) | 90 without backlight | |
Operating Temperature | -10℃ ~ +60℃ | |
Storage Temperature
| -25℃ ~ +70℃ | |
Dimensions | 210*115*55 | |
Weight (without batteries) g | 500 | |
Normal Optical Power Meter Module
Measurement Accuracy | |
Connatural uncertainty(dB) | ±0.25 |
Linearity(dB) | ±0.1 |
Measurement Range(dBm) | -70°+6 or -50~+26 |
General Information | |
Measurement Unit | dB/dBm |
Resolution (dB) | 0.01 |
Calibration Wavelength(nm) | 850,1300,1310,1490,1550,1625 |
Detector Type | InGaAs |
Optical Connector | FC/SC/ST Interchangeable |
Fiber Type | 9/125um |
Working Hours (hr) | 100 without backlight |
2.3 VFL Module
Output Power(mW) | 1mw |
Wavelength(nm) | 650 |
Fiber Type | SM, MM |
Modulation Frequency (Hz) | 2 |
Optical Connector | FC/SC/ST Interchangeable |
Standard Packages:
MODEL | INCLUDES |
JT3212B | JT3212B PON Power Meter, Protective Rubber Boot, Rechargeable battery, Power Supply Adaptor, User Manual and Cotton Swabs, USB Cable, Rigid carrying case can be optional. |
