Handheld Adjustable Light Source
Home » Products » FTTx Solutions » Fiber optic light source » Handheld Adjustable Light Source
Share to:

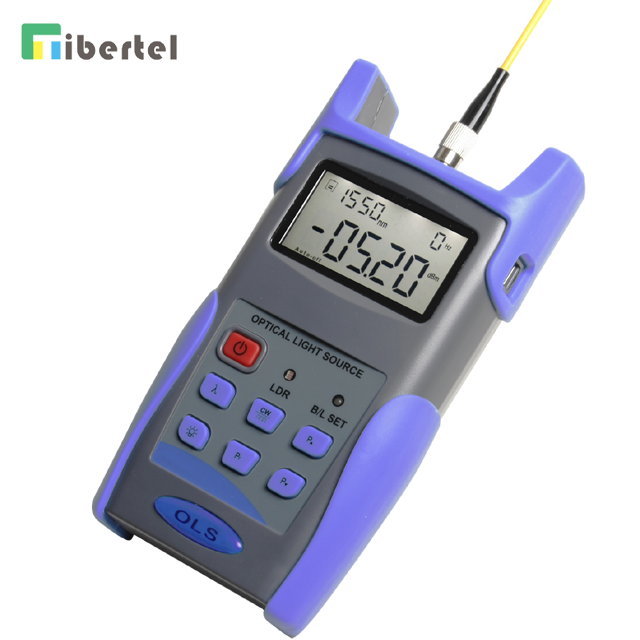

Handheld Adjustable Light Source

  • TJ04A1202
Delivery Date:5 daysBrand Name:T&J
Model:JT3116 / TJ04A1202Wavelengths(nm):850/1300/1310/1490/1550/1625(others specify on requests)
Emitter Type:FP-LD(others specify on requests)Ouput Power(dBm):-5(±0.5)
Adjustable step size(dBm):<0.5Modulation(Hz):CW, 270, 330, 1K, 2K
Stability(dB,30min, 20C):<0.1Optical Connector:FC/ universal adaptor
Dimension(mm):175x90x45Weight (g):260

TJ04A1202 Handheld Adjustable Light Source is T&J newly designed fiber optic tester, it aims at fiber network installation, fiber network engineering acceptance and fiber network maintenance. Combined usage with TJ04A1303 handheld optical power meter, it offers a quick and accurate testing solution on both SM and MM fibers. The TJ04A1202 provides 1 to 4 wavelengths and output power can be adjustable on customer requests. Also the TJ04A1202 features good appearance, good touch feeling and considerate humanity design.



Features

  • Wave ID information can be transmitted when used with JT3216 Optical Power Meter.

  • Tone generation, 270HZ,330HZ,1KHZ,2KHZ

  • Output power can be adjustable

  • Output power value is shown on LCD display

  • Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

  • AA alkaline and AC adapter for power supply

  • Low battery indication



Specifications

Model

JT3116  / TJ04A1202

Operating wavelength(nm)

850/1300/1310/1490/1550/1625(others specify on   requests)

Applicable fiber

SM,MM

Laser type

FP-LD(others   specify on requests)

Output Power(dBm)

-5(±0.5)

Adjustable step size(dBm)

<0.5

Stability(dB,30min,20℃)

<0.1

Modulation(Hz)

CW,   270,330,1K,2K

Fiber Port

FC/PC

Alkaline Battery

3*AA,1.5V

Power Supply Adaptor(V)

8.4

Battery Operating time(h)

45

Operation Temperature(℃)

-10~+60

Storage Temperature(℃)

-25~+70

Outline size(mm)/weight (g)

175x90x45  /  260g

Standard Package

MODEL

INCLUDES

TJ04A1202

TJ04A1202 Optical   Light Source, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and   Soft carrying case.
