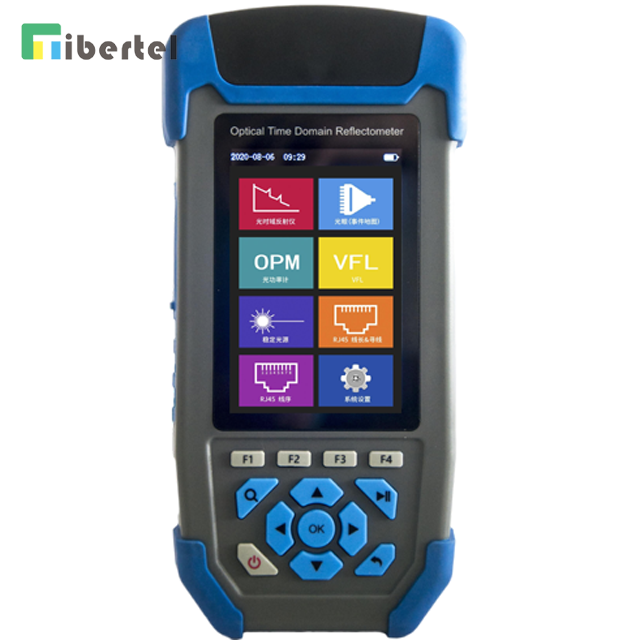

TJ04A3302 Mini-Pro OTDR is apply to FTTx and access network construction and maintenance, to test fiber breakpoint, length, loss and input light automatic detection, automatic test by one key.

The tester is compact with 3.5inch colorful LCD screen, new plastic shell design, shock-proof and drop-proof. The tester also combine 8 functions with highly integrated OTDR, Event maps, Stable Light source , Optical power meter, Visual fault locator , cable sequence proofreading, cable length measurement and lighting functions. It could quick detection of breakpoint, universal connector, .600 internal storage, TF card, USB data storage and built-in 4000mAh lithium battery, USB charging. It is a good choice for long term field work.

OTDR Optical Time Domain Reflectometry Mini-Pro OTDR TJ04A3302 Handheld OTDR fiber tester Fiber Site Tester fiber site equipment

Mini-Pro OTDR
Model	TJ04A3302
Wavelength	1310nm/1550nm±20nm
Fiber Type	G.652 SM Fiber
Dynamic Range	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging Accuracy	±（1m+Sampling Interval +0.005％×Test Distance）
Loss Accuracy	±0.2dB/dB
Sampling Points	16k~128k
Sampling Resolution	0.05m~8m
Reflection Accuracy	±3dB
Data Storage	Internal：≥600；External：TF Card
Laser Safety Level	Class Ⅱ level
File Format	SOR Standard File Format
Connector	FC/UPC（Interchangeable SC、ST）／SC/APC as optional
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint FC/SC/ST
Test Range	-50dBm～+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration Wavelength	850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type	FP-LD
Output Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW，±0.5dB/15min（Test after15mins of preheating）
Connector	FC/UPC（Interchangeable SC、ST）
VFL
Work Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST
RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Dispaly	3.5 inch Color LCD
Data Interface	Micro USB
External Storage	TF Card
Power Supply	Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A
Battery Life	Standby＞20h；Measuring Time＞12h
Operating Temperature	-10℃～+50℃
Storage Temperature	-40℃～+70℃
Relative Humidity	0～95％Non Condensing
Weight	≤350g
Dimension	173mm×82mm×37mm
Functions： OTDR/OPM/LS/VFL/RJ45 Sequence/Flashlight

Mini-Pro OTDR
Model	TJ04A3302
Wavelength	1310nm/1550nm±20nm
Fiber Type	G.652 SM Fiber
Dynamic Range	24dB/22dB
Event Blind Zone	3m
ATT Blind Zone	8m
Test Range	500m~60km
Pulse Width	3ns~10us
Ranging Accuracy	±（1m+Sampling Interval +0.005％×Test Distance）
Loss Accuracy	±0.2dB/dB
Sampling Points	16k~128k
Sampling Resolution	0.05m~8m
Reflection Accuracy	±3dB
Data Storage	Internal：≥600；External：TF Card
Laser Safety Level	Class Ⅱ level
File Format	SOR Standard File Format
Connector	FC/UPC（Interchangeable SC、ST）／SC/APC as optional
OPM
Wave Range	800nm~1700nm
Interface Type	Universal Joint FC/SC/ST
Test Range	-50dBm～+26dBm
Uncertainty	±5%
Frequency Identification	CW/270/330/1k/2kHz
Calibration Wavelength	850/980/1300/1310/1490/1550/1625/1650nm
LS
LD Type	FP-LD
Output Wavelength	1550nm±20nm	1310nm/1550nm±20nm
Output Power	≥-5dBm
Modulation Frequency	270/330/1k/2kHz
Stability	CW，±0.5dB/15min（Test after15mins of preheating）
Connector	FC/UPC（Interchangeable SC、ST）
VFL
Work Wavelength	650nm±20nm
Output Power	≥10mW
Mode	CW/1Hz/2Hz
Connector	FC/SC/ST
RJ45 Cable Length Measurement
Test Range	300m
Other Parameters
Dispaly	3.5 inch Color LCD
Data Interface	Micro USB
External Storage	TF Card
Power Supply	Polymer Li-battery：3.7V，4000mAh Power Adapter：5VDC，2A
Battery Life	Standby＞20h；Measuring Time＞12h
Operating Temperature	-10℃～+50℃
Storage Temperature	-40℃～+70℃
Relative Humidity	0～95％Non Condensing
Weight	≤350g
Dimension	173mm×82mm×37mm
Functions： OTDR/OPM/LS/VFL/RJ45 Sequence/Flashlight
