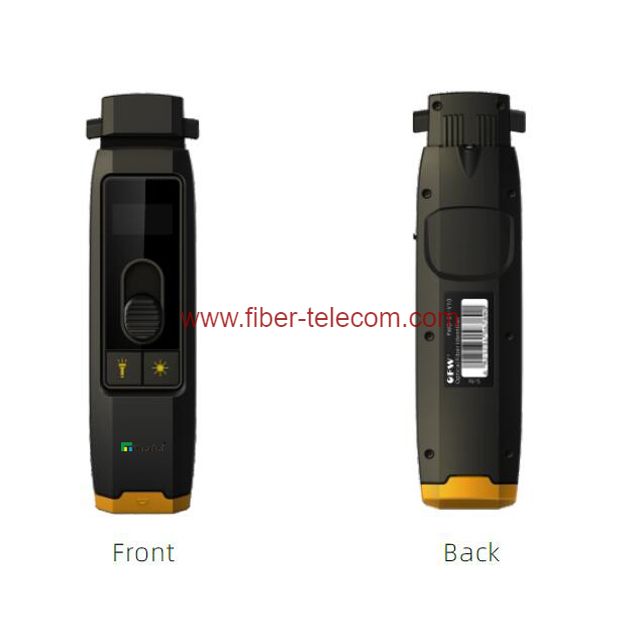

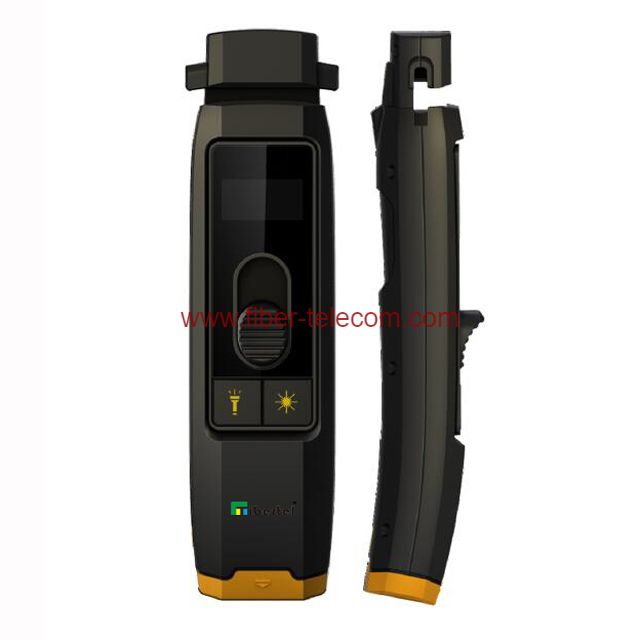

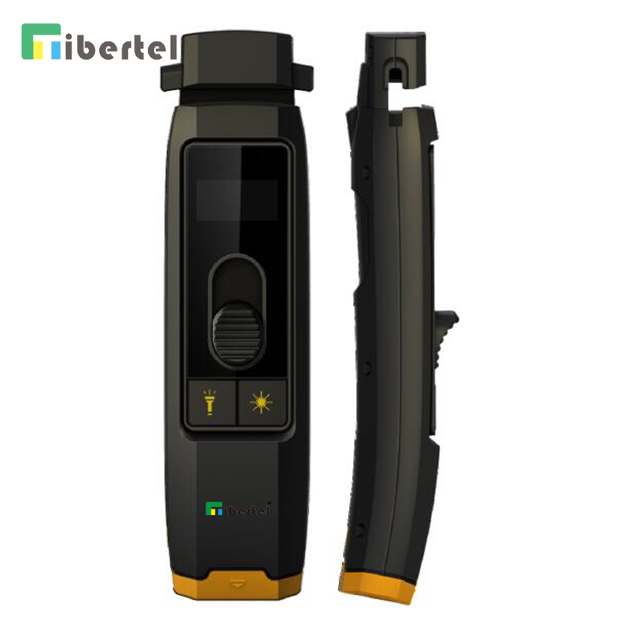

Optical Power Identifier TJ04A0110

Home » Products » FTTx Solutions » Fiber test equipment » Optical Power Identifier TJ04A0110

Part No	TJ04A0110
Live Fiber Identifier Parameter
Fiber Type	0.9, 0.25, 2.0, 3.0 mm fiber
Wavelength Range	700 to 1700nm (SM)
Sensitivity	+10~-40dBm(need wavelength 1550nm)
Recognizable signal type	270Hz、1kHz、2kHz
Visual Fault Locator Parameter
VFL Connector	2.5mm universal connector
Frequency	2±0.5Hz
Output Power	10mW
Others
Batter	Built-in lithium battery
Battery detection	Low battery automatic shutdown
Charging Interface	5V500mA, TYPE-C
Energy Saving Mode	Yes
LED Light	Yes
Beep	Yes
Operating Temperature	-10~+50℃
Storage Temperature	-20~+70℃
Relative Humidity	<95% no condensation
Size	152mm41mm32mm
Weight	80g

Part No	TJ04A0110
Live Fiber Identifier Parameter
Fiber Type	0.9, 0.25, 2.0, 3.0 mm fiber
Wavelength Range	700 to 1700nm (SM)
Sensitivity	+10~-40dBm(need wavelength 1550nm)
Recognizable signal type	270Hz、1kHz、2kHz
Visual Fault Locator Parameter
VFL Connector	2.5mm universal connector
Frequency	2±0.5Hz
Output Power	10mW
Others
Batter	Built-in lithium battery
Battery detection	Low battery automatic shutdown
Charging Interface	5V500mA, TYPE-C
Energy Saving Mode	Yes
LED Light	Yes
Beep	Yes
Operating Temperature	-10~+50℃
Storage Temperature	-20~+70℃
Relative Humidity	<95% no condensation
Size	152mm41mm32mm
Weight	80g
