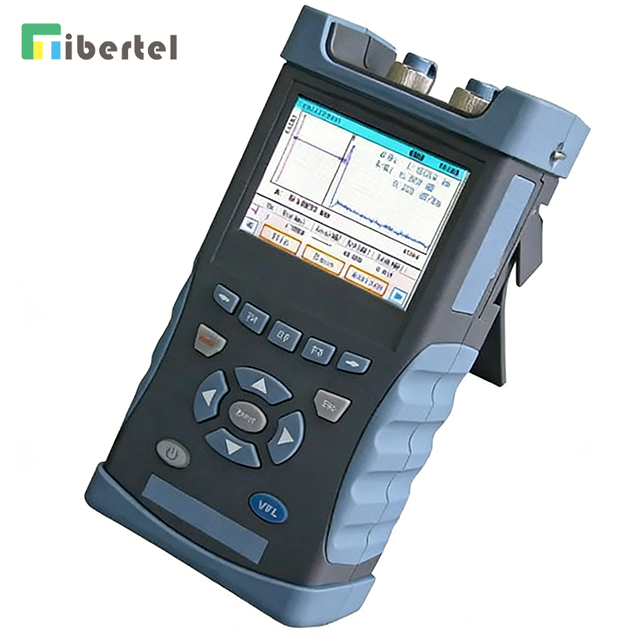

Handheld Optical Time Domain Reflectometry OTDR

Home » Products » FTTx Solutions » Fiber test equipment » Handheld Optical Time Domain Reflectometry OTDR

MODULE	3528	5626		35428
wavelength	1310nm/1550nm±20nm	1550nm/1625nm±20nm		1310nm/1550nm/1490nm±20nm
Applicable Fiber	Single-mode
Dynamic Range	28/26dB		26/24dB		28/26/24dB
Distance Measurement Accuracy	±(1m + sample space + 0.003% * measurement distance)
Event Dead Zone	≤1.6m
Sampling Resolution	0.25, 0.5, 1, 2, 4, 8, 16m
Distance Range	4, 8, 16, 32, 64, 128, 256km
Pulse width	10, 30, 80, 160, 320, 640, 1280, 5120, 10240ns
Loss threshold	0.01dB
Sampling points	65534
Linearity	0.05dB/dB
Memory capacity	≥800 Traces
IOR setting	1.00000∼2.00000
Display	Color LCD (touch screen)
Interface	USB, Min-USB
VFL	650nm±10nm, 2mW(typical); CW/1Hz
Language	English
Optical Connector	FC/UPC (universal connector)
Power Supply	DC:15V∼20V(3A), (AC adapter 100∼240V,50/60Hz,1.5A),Built-in Lithium battery: 4400mAh,7.4V,operating time≥10 hours3
Dimensions	210mm100mm60mm
Weight	about 1kg

NO.	Name	quantity
1	Power line	1
2	AC/DC adapter	1
3	Trace analyzing software,User manual (CD)	1
4	Hard Carrying case	1
Note:For the necessity of improvement, the material contained in this document is subject to change without notice.
