| Delivery Date: | 7-working days | Brand Name: | T&J |
|---|---|---|---|
| Connector type: | LC Duplex clip | Fiber core: | duplex |
| Fiber type: | SM / MM / APC | color: | CREAM/GREEN/BLUE |
| Gender: | for duplex sc connector | Origin: | China |
| Delivery Date: | 7-working days | Brand Name: | T&J |
|---|---|---|---|
| Connector type: | LC Duplex clip | Fiber core: | duplex |
| Fiber type: | SM / MM / APC | color: | CREAM/GREEN/BLUE |
| Gender: | for duplex sc connector | Origin: | China |

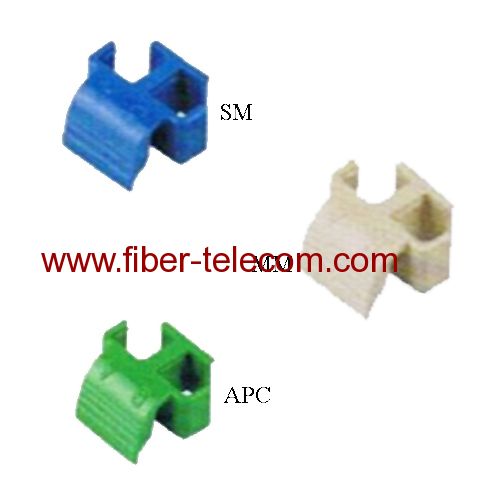

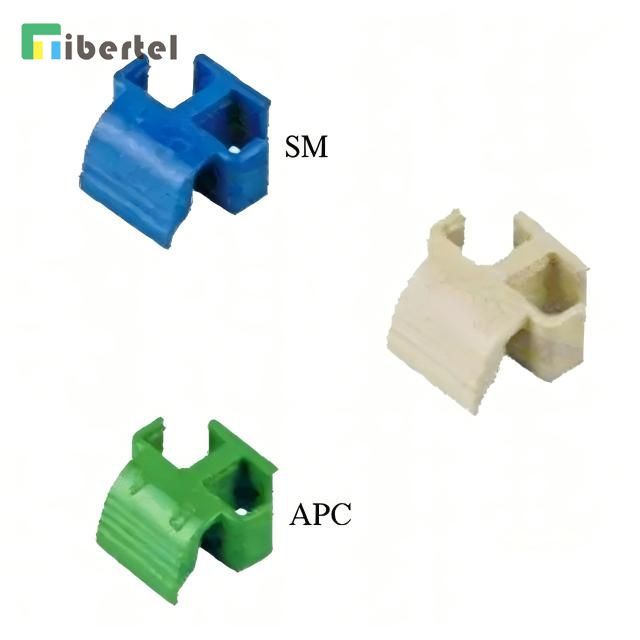

plastic LC Duplex Clip is compatible with LC Pre-assembled Connectors and XPFit. The duplex clip can be installed, removed and re-installed, according to user requirements.
Be used for LC dupelx patchcord,pigtail
Used to combined two connector.
Green, beige and blue color are available
Made of high quality PBT material.
Features
* Single mode and Multimode
* Zirconia sleeves or Phosphor bronze sleeves
* Available without flanges or with flange for duplex, saving panel space
* SC2 8Port high density for patch panel mount applications
* Meet JIS5974 and bellcore GR-326 standard
* Compliant with IEC874-14 & IEC874-19
* All parts compliant with ROHS
Application
* Telecommunication
* CATV
* LAN & WAN
* Network
* Broadband
* FTTH
Specification
Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
SM | MM | SM | MM | SM | MM | ||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | |||||||
Ordering information
* Ferrule size: 125.0μm, 125.3μm, 125.5μm 126.0μm, 127.0μm, 128.0μm
* Ferrule type(for APC): Stepped; Conical
* Boot type: slotted boot, smooth boot. Boot size: 0.9mm; 2.0mm; 3.0mm
* Boot color: Beige; Black; Blue; Grey; Red; White; Yellow
* Housing Color: Beige; Blue; Green
