Applications:
Gigabit Ethernet(ATM, SONET etc)
Active device termination
Video
Telecommunication Networks,
Local Area Networks (LANs)
Premise installations
Multimedia
Industrial & military
FTTX
Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec.
Item | Description |

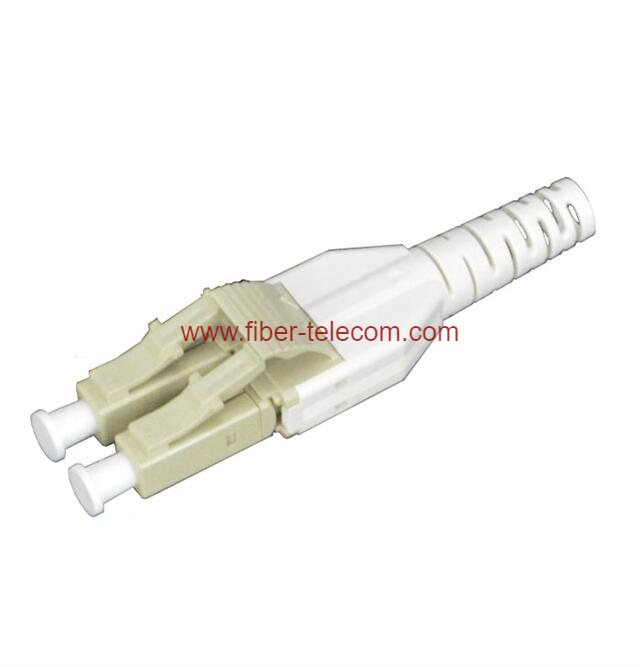

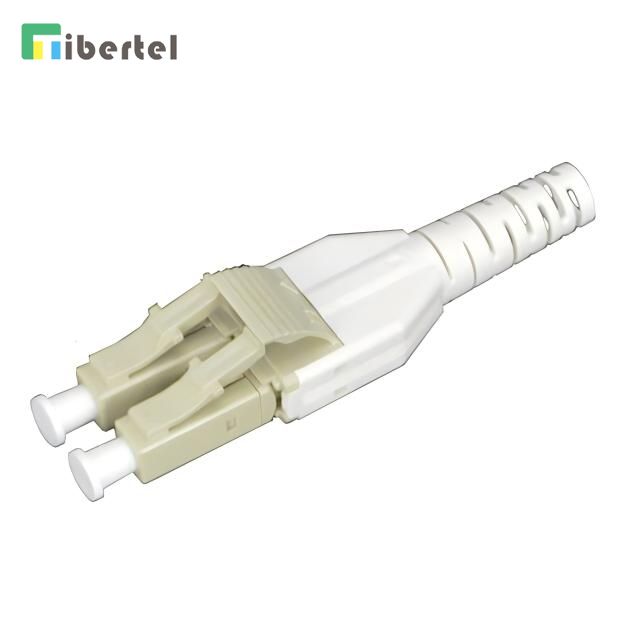

Product Name | LC Fiber Optic Connector Duplex |
Connector Type | LC |
Part No. | TJ01BLD02 |
Fiber Type | MM |
Cable Diameter | 3.0mm |
Insertion loss | ≤0.3dB |
Return Loss | ≥45dB |
Ferrule Polishing | PC/UPC |
Color | White and Grey |
Operating Temperature | -40℃~+75℃ |
