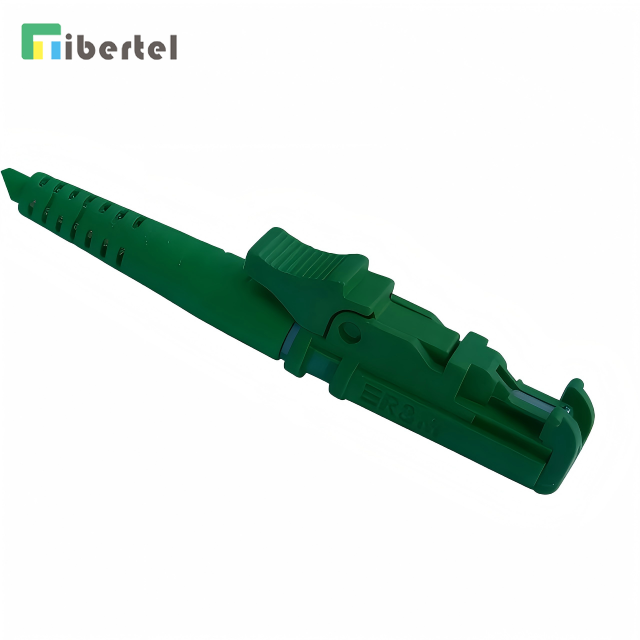

Name: E2000/APC Simplex Fiber Optic Connector
Rating: 5.0 (41 reviews)

Have a question? Contact us now! 0086-13819879462 sales@fiber-telecom.com

E2000/APC Simplex Fiber Optic Connector

Home » Products » FTTx Solutions » Fiber optic connector » E2000/APC Simplex Fiber Optic Connector

Brand Name:	T&J	Fiber core:	simplex
Fiber type:	SM / MM / APC	Dimension:	0.9mm, 2.0mm, 3.0mm
Material of housing:	plastic	Material of boot:	plastic
Boot color:	Blue / Green	Ferrule:	Ceramic
Standard:	European (EN 18270) and International (IEC 61754-15)	Origin:	China

Brand Name:	T&J	Fiber core:	simplex
Fiber type:	SM / MM / APC	Dimension:	0.9mm, 2.0mm, 3.0mm
Material of housing:	plastic	Material of boot:	plastic
Boot color:	Blue / Green	Ferrule:	Ceramic
Standard:	European (EN 18270) and International (IEC 61754-15)	Origin:	China

Parameter	Unit	LC,SC,FC,MU,ST, SC-ST,FC-ST, FC-SC, FC-LC, FC-MU				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	db	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.2		≤0.3
Return Loss	db	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55		≥75
Exchangeability	db	≤0.2				≤0.2			≤0.2
Repeatability	db	≤0.2				≤0.2			≤0.2
Durability	time	>1000				>1000			>1000
Operating Temperature	℃	-40~+75				-40~+75			-40~+75
Storage Temperature	℃	-45~+85				-45~+85			-45~+85

Parameter	Unit	LC,SC,FC,MU,ST, SC-ST,FC-ST, FC-SC, FC-LC, FC-MU				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	db	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.2		≤0.3
Return Loss	db	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55		≥75
Exchangeability	db	≤0.2				≤0.2			≤0.2
Repeatability	db	≤0.2				≤0.2			≤0.2
Durability	time	>1000				>1000			>1000
Operating Temperature	℃	-40~+75				-40~+75			-40~+75
Storage Temperature	℃	-45~+85				-45~+85			-45~+85
