3.0mm SM Uniboot Connector
Home » Products » FTTx Solutions » Fiber optic connector » 3.0mm SM Uniboot Connector

loading

Share to:
sharethis sharing button

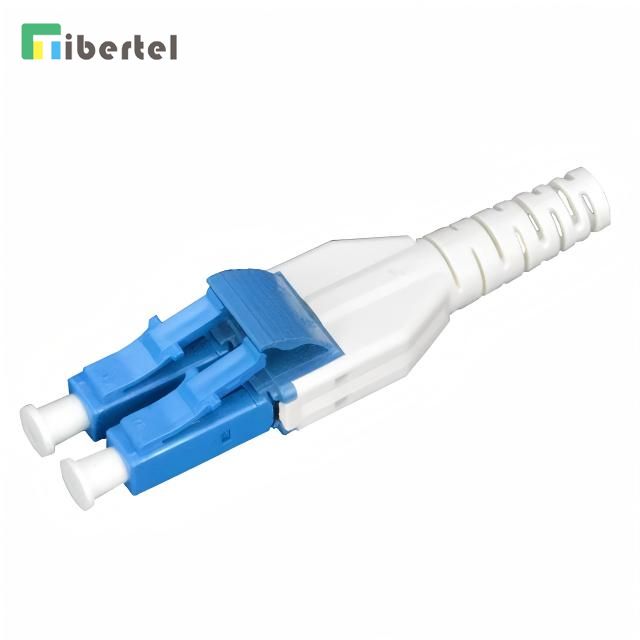

3.0mm SM Uniboot Connector

  • TJ01BLD02

  • Fibertel

Availability:

Applications:
Gigabit Ethernet(ATM, SONET etc)
Active device termination
Video
Telecommunication Networks,
Local Area Networks (LANs)
Premise installations
Multimedia
Industrial & military
FTTX

Specifications:
Boots size: 900um, 2.0mm, 3.0mm
Short boots design available.
Polish Type: LC and UPC
Connectors: Duplex

Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec.


Item
Description
Product Name
LC Fiber Optic Connector Duplex
Connector Type
LC
Part No.
TJ01BLD02
Fiber Type
SM
Cable Diameter
3.0mm
Insertion loss
≤0.3dB
Return Loss
≥45dB
Ferrule Polishing
PC/UPC
Color
White and Blue
Operating Temperature
-40℃~+75℃
