SC Duplex Fiber Optic Connector
Home » Products » FTTx Solutions » Fiber optic connector » SC Duplex Fiber Optic Connector
Share to:

SC Duplex Fiber Optic Connector

Delivery Date: 7-working days Brand Name: T&J
Connector type: SC Fiber core: Duplex
Fiber type: SM / MM / APC Material of housing: plastic
Material of boot: plastic Boot color: Blue / Green / Beige or on request
Ferrule: Ceramic Dimension: 0.9mm, 2.0mm, 3.0mm
Standard: Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec Origin: China

SC/PC Duplex Optical Fiber Connector



Applications:

CATV, Metro, Active device termination,

Test equipment

Telecommunication Networks,

Local Area Networks (LANs)

Data processing networks, Premise installations

Wide Area Networks (WANs),

Industrial, medical & military


Specifications:

Boots size: 900um, 2.0mm, 3.0mm

Polish Type: SM, MM, and APC

Connectors: Duplex

Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec.


Specification

Parameter

Unit

FC,LC,SC

ST,MU

MTRJ,MPO

SM

MM

SM

MM

SM

MM

PC

UPC

APC

PC

PC

UPC

PC

PC

UPC

PC

Insertion loss(typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.2

≤0.2

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

Exchangeability

dB

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~+75

-40~+75

-40~+75

Storage temperature

°C

-45~+85

-45~+85

-45~+85

Cable diameter

mm

Φ3.0,Φ2.0,Φ0.9

Φ3.0,Φ2.0,Φ0.9

Φ3.0,Φ2.0,Φ0.9



Product Show

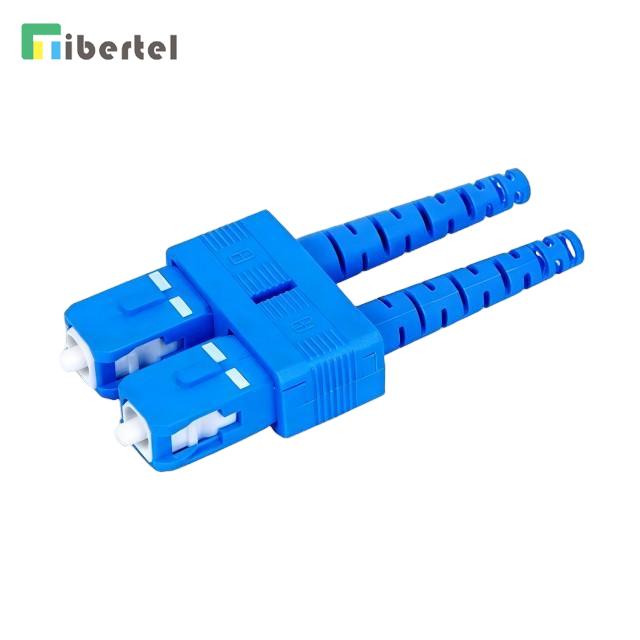

SC SM duplex fiber optic connectors

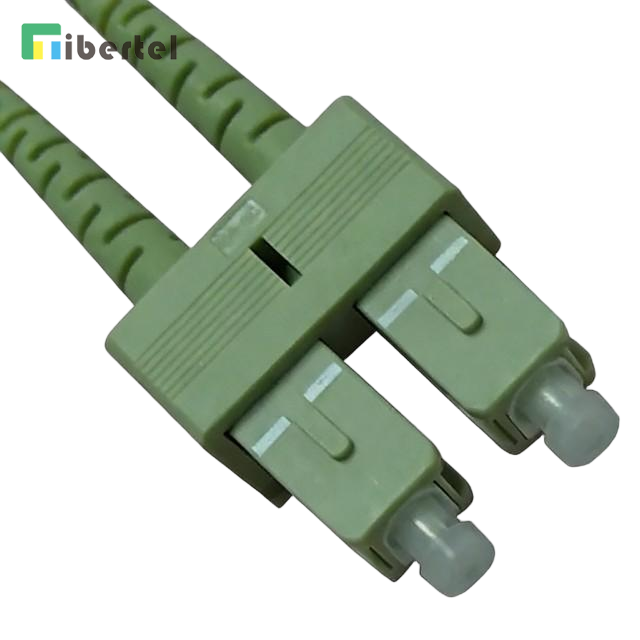

SC MM duplex fiber optic connectors



SC/APC SM duplex fiber optic connectors




Packing: 100 piece / polybag.

Customer's brand or LOGO available to stick on the polybag.

Or customed polybag available.



SC Duplex Optical Fiber Connector
