Brand Name: | T&J | Name: | MTP/MPO Loopbacks |
---|---|---|---|
Fiber Core: | 4 core, 8 core, 12 core available | Fiber type: | SM / MM |
Ferrule polishing: | PC / APC | Typical standard loss(dB): | 0.35 |
Male/Female: | Male: with pin / Female: without pin | Testing Wavelength(nm): | 1310nm for SM; 850nm for MM |
Working Temperature(℃): | -40 ~ +85 | Origin: | China |
Brand Name: | T&J | Name: | MTP/MPO Loopbacks |
---|---|---|---|
Fiber Core: | 4 core, 8 core, 12 core available | Fiber type: | SM / MM |
Ferrule polishing: | PC / APC | Typical standard loss(dB): | 0.35 |
Male/Female: | Male: with pin / Female: without pin | Testing Wavelength(nm): | 1310nm for SM; 850nm for MM |
Working Temperature(℃): | -40 ~ +85 | Origin: | China |

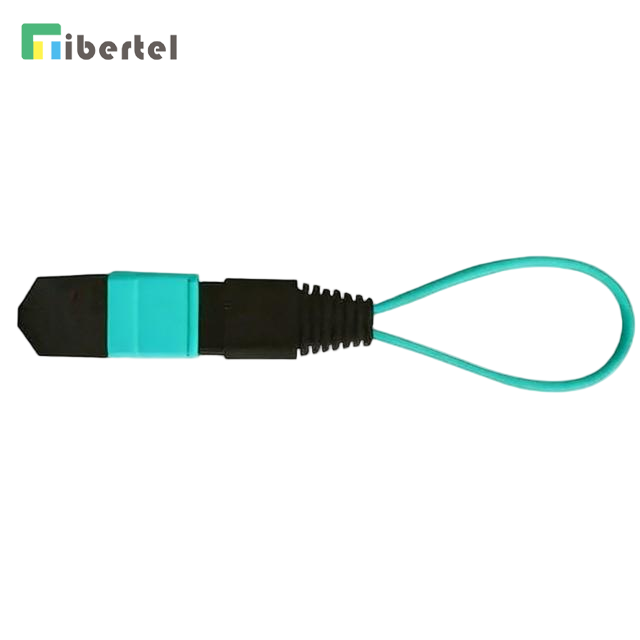

The MTP/MPO Fiber Loopback provided by T&J Industrial Co., Ltd is used for testing the transmitting ability and receiving sensitivity of network device, besides, it is a reliable product to test the system loop.
Features:
1. 4 core, 8 core, 12 core available
2. Standard loss or Low loss on request
3. Single mode APC or multi-mode PC
4. Standard array or customized
5. Male/female pin position test indicators stable and reliable
Specifications:
Fiber Type | SM | MM | ||
Standard loss | Typical(dB) | 0.35 | 0.35 | |
Maximum(dB) | 0.6 | 0.5 | ||
Insertion Loss | Typical(dB) | 0.20 | 0.20 | |
Maximum(dB) | 0.35 | 0.35 | ||
Return Loss(dB) | ≥60(APC) | ≥20(PC) | ||
≥50(PC) | ||||
Male/Female | Male:with pin Female:without pin | |||
Durability(dB) | ≤0.2 200 mating | |||
Working Temperature(℃) | -40 ~+85 | |||
Testing Wavelength(nm) | 1310 | 850 |
