CATV, Video and Multimedia
Asynchronous Transmission Mode(ATM)
Gigabit Ethernet
Active device/Transceiver interface
Premise installations
Telecommunication Networks,
Industrial, medical & military
Parallel optical interconnect between PC cards and patch panels
interconnection for O/E modules
Optical Switch interframe connections
Specifications:
Boots size: 2.0mm duplex
Polish Type: SM, MM, and APC
Precision molded MT ferrule

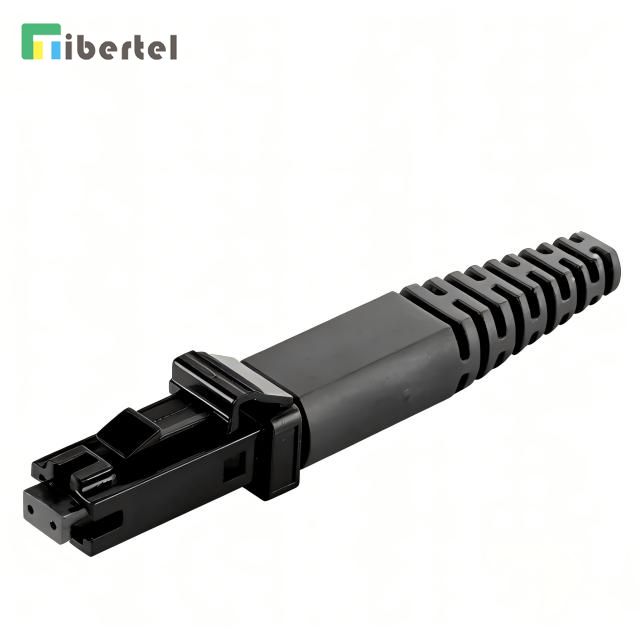

Connector types | MTRJ |
Cable Type | SM | MM |
Grinding Type | Plane grinding |
Insertion Loss | ≤0.5db | ≤0.5db |
Return Loss | ≥40db | N/A |
Operating Temperature | -20℃--+70℃ |
Storage Temperature | -40℃--+85℃ |
Parameter | Unit | LC,SC,FC,MU,ST, SC-ST,FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 |
SM | MM | SM | MM | SM |
PC | UPC | APC | PC | PC | UPC | PC | PC | APC |
Insertion Loss (Typical) | db | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 |
Return Loss | db | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Exchangeability | db | ≤0.2 | ≤0.2 | ≤0.2 |
Repeatability | db | ≤0.2 | ≤0.2 | ≤0.2 |
Durability | time | >1000 | >1000 | >1000 |
Operating Temperature | ℃ | -40~+75 | -40~+75 | -40~+75 |
Storage Temperature | ℃ | -45~+85 | -45~+85 | -45~+85 |
