TJ01BMS02
Gigabit Ethernet(ATM, SONET etc)
Active device termination
Video
Telecommunication Networks,
Local Area Networks (LANs)
Premise installations
Multimedia
Industrial & military
FTTX
Specifications:
Boots size: 900um, 2.0mm, 3.0mm
Short boots design available.
Polish Type: SM, MM, and APC
Connectors: Simplex and Duplex
Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS spec.
Item | Description |

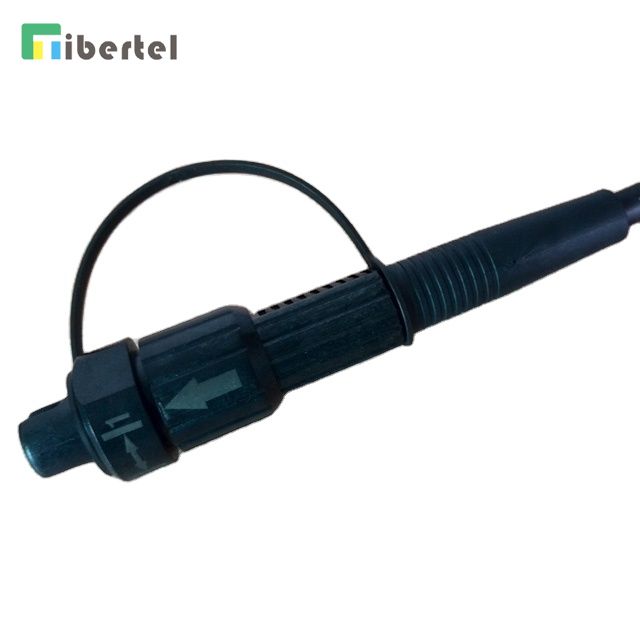

Product Name | SC Fiber Optic Connector Simplex |
Connector Type | SC |
Part No. | TJ01BMS02 |
Fiber Type | All Single Mode and Multi Mode |
Cable Diameter | 2.0/3.0mm |
Insertion loss | ≤0.3dB |
Return Loss | ≥45dB |
Operating Wavelength | 1310,1510nm |
Material of Boot | Plastic |
Material of Housing | Plastic |
Ferrule | Ceramic |
Fiber core | Simplex |
Dimension | 2.0/3.0mm |
Working Temperature | -40～+75℃ |
