Visual Fault Locator (VFL)
Home » Products » FTTx Solutions » Fiber optic fault locator » Visual Fault Locator (VFL)
Share to:

Visual Fault Locator (VFL)

Delivery Date: 5 days Brand Name: T&J
Model: JT3105 Wavelengths(nm): 650±10nm
Fiber Model: SM,MM Output Power: 1mw / 10mw
Spectral Width(nm): ≤5 Emission: CW, 2Hz can be optional
Optical Connector: FC/ Universal 2.5mm adaptor Power Supply: 2pcs AA alkaline batteries
Battery Operating Time: 30 hours Dimension(mm): 108x52x20mm

JT3105 Visual Fault Locatoris used for the measurement in single-mode or multi-mode fibers. It features a rugged design, an universal connector and an accurate measurement. The JT3105 visual fault locator easily identifies the cutting, micro-bending of the optic fiber, passes through the jacket fiber and performs an end-to-end fiber identification. Its measurement range is up to 5km. It is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in the installation and maintenance of fiber optic networks.

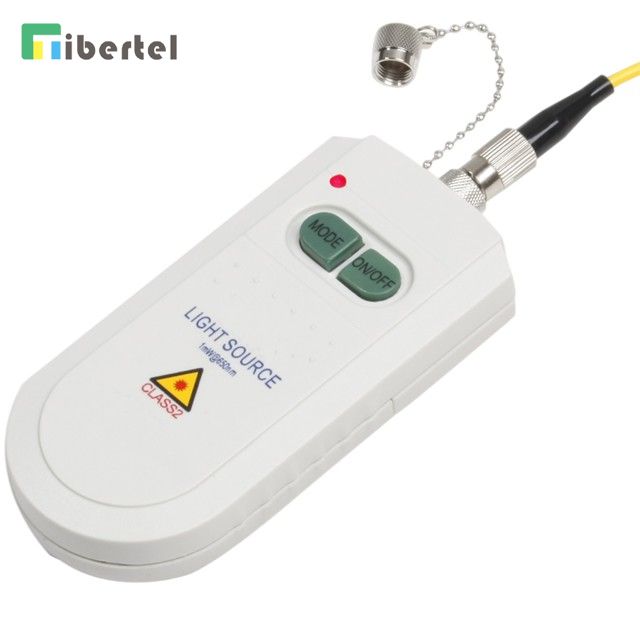

pictures of JT3105 Visual Fault Locator


The port of Optical Connector is designed for FC type, but it is easily to test SC, LC and other type connectors with a hybrid adaptor.



Dimension of JT3105 VFL



Features:

  1. Detects breaks, micro-bends even through jacketed fibers

  2. End-to-end visual fiber identification

  3. Locates faults up to 5km along the fiber.

  4. Mechanical fusion splice optimization

  5. Compact size and light weight, suitable for field testing



Applications:

  • Maintenance in Telecom

  • Maintenance CATV

  • Fiber Optic Lab Testing

  • Other Fiber Optic Measurements



Specifications:

 Type

JT3105

 Wavelengths(nm)

650±10nm

 Fiber   Model

SM,MM

 Output   Power

1mw

 Spectral   Width(nm)

≤5

 Emission

CW, 2Hz can be optional

 Optical   Connector

FC/ Universal 2.5mm adaptor

 Power   Supply

2pcs AA alkaline batteries

 Battery   Operating Time

30 hours

 Operating   Temperature(℃)

-10~+60

 Storage   Temperature(℃)

-25~+70

 Dimension(mm)

108x52x20

 Weight   without battery (g)

56

Remark: Pen-type VFL can be provided!



Standard Packages:

MODEL

INCLUDES

 JT3105

JT3105 Visual Fault Locator,   Alkaline battery, User Manual, Cotton swabs and Protective Holster.


JT3105 Visual Fault Locator (VFL)
