Optical Fiber Ranger

  • TJ04A1501

Availability:
Delivery Date:5 daysBrand Name:T&J
Model:JT3304NOperating Wavelength:1550nm(1310nm Optional)
Fiber Model:9/125um SMDetector Type:InGaAs
Peak Power of laser:≥60mWMax. Displaying Distance:Reflection Event 60km (≥1dB);Non-reflection Event 20km (≥2.5dB)
Reflection Event Dead Zone:15mDimension:190x100x50mm
Weight without battery (g):330Origin:China

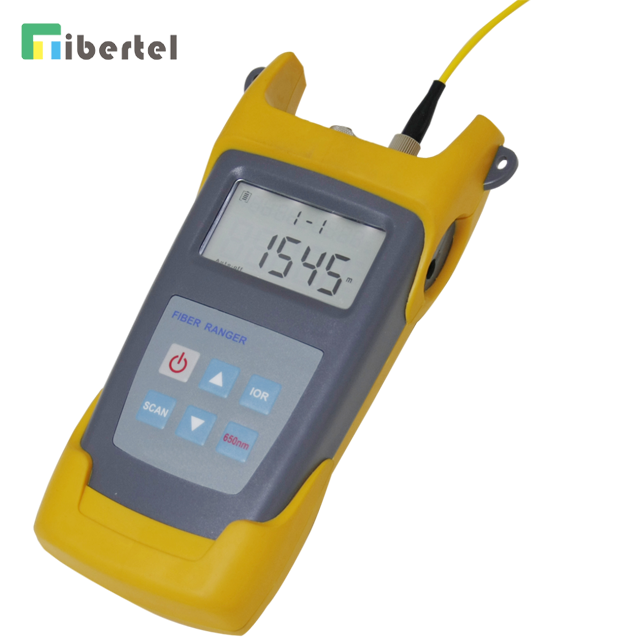

TJ04A1501 Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the JT3304N fiber ranger detect fiber faults location more accurate and easy.



Features:

  • More accurate testing results and better repeatability.l  Portable, rugged, lightweight; Easy to use.

  • Up to 8 fiber faults can be detected in each measurement.

  • Automatic Pulse Width Control design to ensure a convenient operation.

  • Easy to identify the faults location.

  • Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.

  • Dust, water and shock proof, designed for field use

  • Long battery life, up to 5000 measurements operation.



Applications:

  • Testing the distance of the fiber and identify the faults location in the fiber link.

  • Locates reflective and non-reflective breaks in the fiber network.

  • Inspection of fiber repair and maintenance.

  • TJ04A1501 Fiber Ranger is ideal to be used in FTTx network installation and maintenance.



Specifications:

Model

JT3304N

New PN
TJ04A1501

Operating   Wavelength

1550nm(1310nm Optional)

Fiber Type

9/125um SM Fiber

Optical Connector Type

FC/PC

Detector Type

InGaAs

Peak Power of laser

≥60mW

Max. Displaying Distance

Reflection Event

60km (≥1dB)

Non-reflection Event

20km (≥2.5dB)

Measurement Unit

m

Reflection Event Dead Zone

15m

Distance Accuracy(Reflection   Event)

±(2m+2*10(-3)*Distance)

Wavelength of VFL Option

650nm

Output Power of VFL Option

>=1mW

Power Supply

Alkaline Battery (3pcs AA 4.5V Batteries)

Battery Operating Time

≥5000 measurements

Working Temperature

-5~40℃

Storage Temperature

-10~60℃

Humidity

0~85%(Non-condensation)

Dimensions

190x100x50mm

Weight without battery(g)

330

Standard Packages:

MODEL

INCLUDES

TJ04A1501

TJ04A1501Fiber Ranager, 3pcs 1.5V   batteries, User Manual, Cotton swabs and Soft carrying case.
