Mini handheld optical power meter
Home » Products » FTTx Solutions » Fiber optic power meter » Mini handheld optical power meter
Share to:

Mini handheld optical power meter

  • TJ04A1301
Delivery Date:5 daysBrand Name:T&J
Model:JT3205 / TJ04A1301Wavelength(nm):800~1700nm
Detector:InGaAsCalibrated Wavelength(nm):850,980,1310,1550nm
Resolution(dB):0.01Optical Connector:FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply:Alkaline BatteryOperating Temperature(C):-10 ~ +60
Dimension(mm):93*60*16Weight(g):66

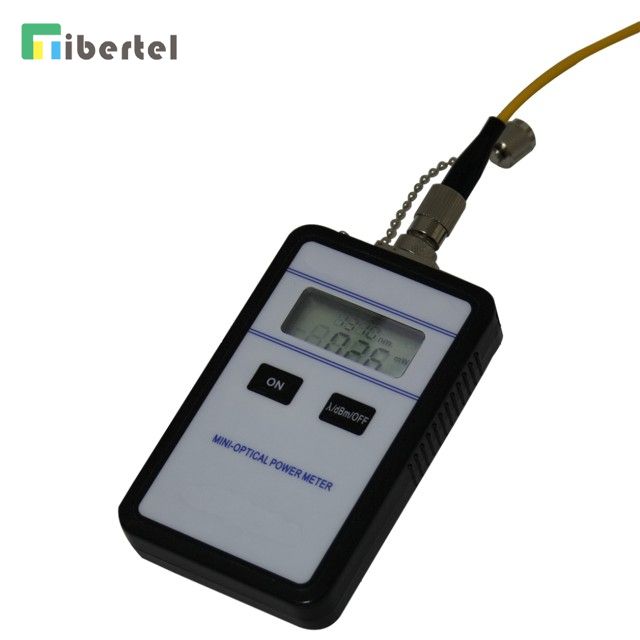

TJ04A1301 Mini handheld optical power meter is the most lightweight and compact in size testing instrument. If features ease-of-use and economy advantages and can be used for absolute power measurement in optical fibers. TJ04A1301 in combination w ith the JT3110 mini handheld light source become the most portable and advantageous testing pair.




Features:

  • The most compact in Size, ideal for field operation

  • Power measurements in dBm and mw.

  • 10 minutes Auto-off function conserving battery life



Applications:

  • Maintenance in Telecom

  • Maintenance CATV

  • Fiber Optic Lab Testing

  • Other Fiber Optic Measurements



Specifications:

    Type

JT3205A / TJ04A1301a

JT3205B / TJ04A1301b

JT3205C / TJ04A1301c

JT3205D / TJ04A1301d

Wavelength(nm)

800~1700nm

Detector

InGaAs

Measurement  Range   (dBm)

-60~+3

-50~+10

-40~+20

-30~+30

Uncertainty

±5%

Calibrated Wavelength(nm)

 850,980,1310,1550nm

Resolution(dB)

0.01

Optical Connector

FC(interchangeable SC,ST) / as well as 2.5mm universal

Power Supply

Alkaline Battery

Battery Operating Time

360 hours with three 1.5V batteries

Operating Temperature(℃)

-10 ~ +60

Storage Temperature(℃)

-25 ~ +70

Relative Humidity

0 to 95% (non-condensing)

Dimension(mm)

93*60*16

Weight(g)

66



Standard Packages:

MODEL

INCLUDES

All   TJ04A1301 Models

TJ04A1301 Optical Power Meter,   Alkaline battery, Instruction Manul, Cotton swabs and Protective Holster.
