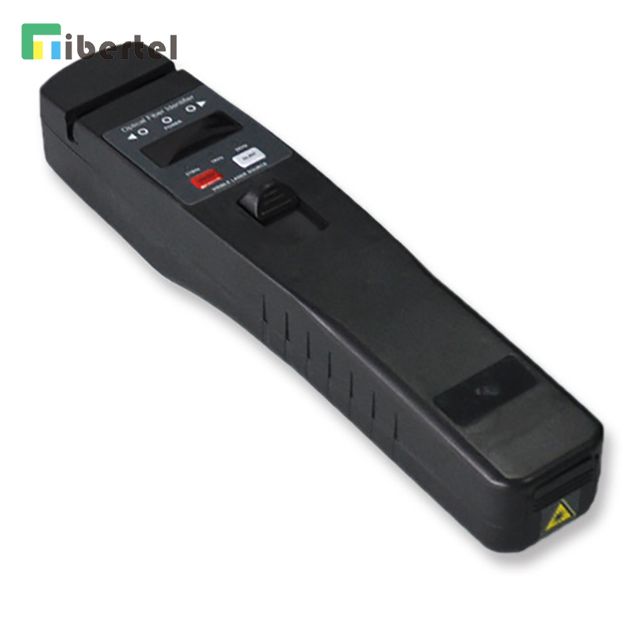

Optical fiber identifier in one piece

  • TJ04A1601D
Delivery Date:5 daysBrand Name:T&J
Model:TJ04A1601DIdentified Wavelength Range:750-1700 nm
Identified Signal Type:CW, 270Hz±5%,1kHz±5%,2kHz±5%Detector Type:dia.1mm InGaAs
Adapter Type:<=3.0mmInsertion Loss (dB):0.8 (1310nm),  2.5 (1550nm)
Signal Direction:LEDSignal Frequency:270Hz, 1kHz, 2kHz
Dimension:230*43*48mmWeight without battery (g):200

Description

Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function. Using the macro bending technology on line for nondestructive testing, Fiber Identifier can measure the signal direction and power and avoid misoperation resulting in interrupted lines.



Features

Indicate the signal directions and power in fiber

Indicate the signal presence or absence (Live or dark fiber) * Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning

Displays the relative core power

Don't need to replace adaptor

Lower power indication

Build in VFL function



Specifications

Type

Fiber Identifier

Identified   Wavelength Range

750-1700 nm

Insertion Loss

1.0dB

Fiber Type

3mm Fiber

Identified Signal   Type

270Hz/1KHz/2KHz

Display Type

LED

Detector Type

1mm InGaAs

Minimum detection   power

-35dBm(1550nm)

-30dBm(1310nm)

Center Wavelength

650nm

Output Power

10mW

Alkaline Battery

2*AA

Battery Life

60H

Operating   Temperature

0~+50

Storage   Temperature

-20~+60

Weight

200g

Dimension

230*43*48mm



 Standard Packages

 MODEL

INCLUDES

TJ04A1601D

Optical Fiber Identifier, Alkaline battery, User Manual, Cotton
