Item | Description | |

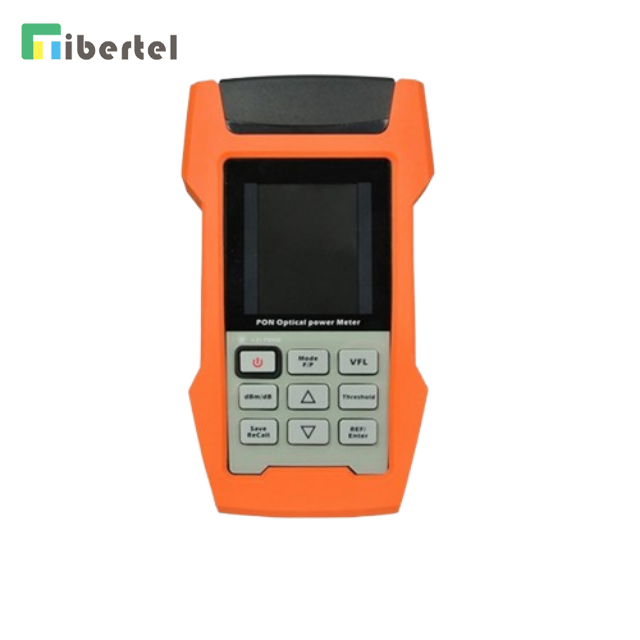

Product Name | PON Power Meter | |
Wavelength | 1310 nm:+10--35dBm/1490nm:+10~-50dBm/1550 nm:+25~-50dBm | |
Pass Through Loss | < 1.5 dB | |
Accuracy* | +0.2 dB (burst signal: +0.5dB) | |
Threshold sets | 10 | |
Data Storage | 1000 | |
Connector | SC/UPC(or customize ) | |
Auto Power Off | No operation in10 minutes (can be canceled), Low battery energy | |
Battery Charge | Yes | |
Connect To PC | Optional function | |
Operate Time | Above 36 hours | |
Power Supply | 3*AA batteries or AC/DC power supply adapter | |
Size(H*W*D) | 190mm*90mm*40mm | |
Weight | about 450g | |
Storage Temperature | -20--+60 ℃.< 90%RH | |
Operating Temperature | -10--+50 ℃,<90%RH | |
