TJ01C201A
Availability: | |
---|---|
Item | Description |

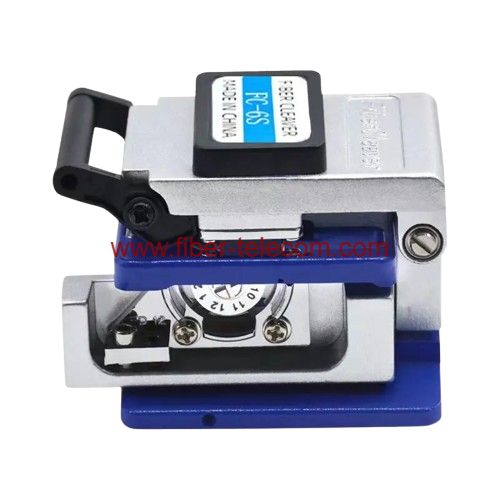

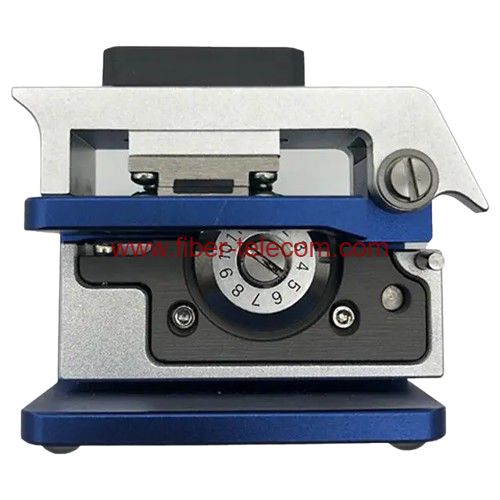

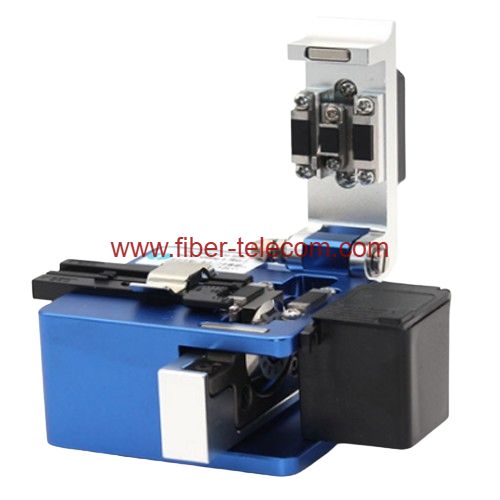

Product Name | Fiber Optic Cleaver FC-6S |
Model | TJ01C201A |
Fiber Type | silicon |
Fiber Diameter | 250um/900um |
Bare Fiber Diameter | 125um |
Cleave Angle Capability | typically<0.5˚ (single core) |
Cleave Length | 5~20mm |
Blade Lifetime | 48,000 fiber cleaves (24 positions x 2 hights) |
Dimension | 58*55*54 (mm) |
Weight | 260g |
Model | Description |
TJ01C201A -1 | High Precision Fiber Cleaver with fiber collector |
TJ01C201A -2 | High Precision Fiber Cleaver without fiber collector |
TJ01C201A -RCB | Replace Blade |
