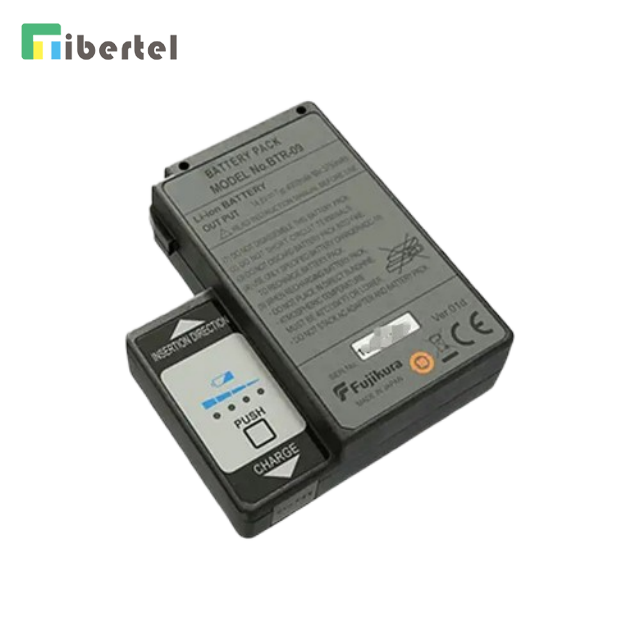

The detachable battery pack BTR-09 is used exclusively for Fujikura Fusion Splicer 70 and 19 series.
The rechargeable battery is charged by connecting to ADC-18 AC adaptor using DCC-18 charge cord.
Specifications:
| Model | BTR-09 |
| Type | Lithium battery |
| Output voltage | 14.8V |
| Battery capacity | 4.0Ah |
| Battery charger | Exclusive Battery Charger, ADC-1 Battery charge cord, DCC-18 |
| Expected battery cycle life | Max.500 cycles |
| Battery capacity indicator | Available |
| Operating condition | -10 to +50 degree C / Non dew |
| Dimension (mm) | 132*117*38 (W*D*H) |
| Weight (g) | 558 |
| Use for | 70 series, 19 series. |
USAGE CONDITION:
Due to the nature of Li-ion battery, store in a cool place and half charged (not fully charged, not fully discharged) reduces the aging effect.
PERFORMANCE:
No. of splicer operation (Splicing / tube heating)
| Splicer model | BTR-09 |
| 70S/80S | 200 cycles |
| 19S | 180 cycles |
| 70R | 110 cycles |
| 19R | 140 cycles |
