| Delivery Date: | 5 days | Brand Name: | T&J |
|---|---|---|---|
| T&J Model No.: | TFS500 | Monitor: | 3.5 inch TFT color LCD monitor |
| Applicable fibers: | SM, MM, DS, NZDS | Fiber count: | single |
| Splicing time: | Typical 9 sec | Tube heating time: | Typical 30 sec |
| Return loss: | >60dB | Dimensions: | 25mm(L)×105mm(W)×113mm(H) |
| Weight: | 1.55Kg including battery | Origin: | China |
| Delivery Date: | 5 days | Brand Name: | T&J |
|---|---|---|---|
| T&J Model No.: | TFS500 | Monitor: | 3.5 inch TFT color LCD monitor |
| Applicable fibers: | SM, MM, DS, NZDS | Fiber count: | single |
| Splicing time: | Typical 9 sec | Tube heating time: | Typical 30 sec |
| Return loss: | >60dB | Dimensions: | 25mm(L)×105mm(W)×113mm(H) |
| Weight: | 1.55Kg including battery | Origin: | China |

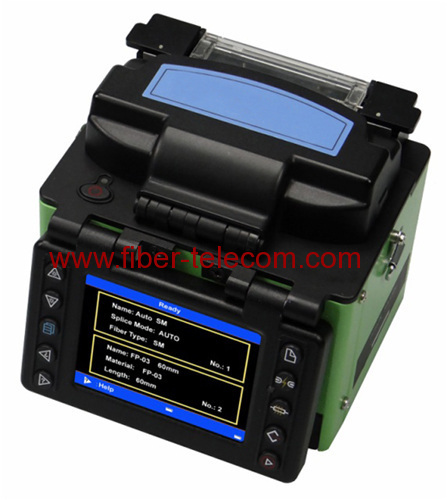

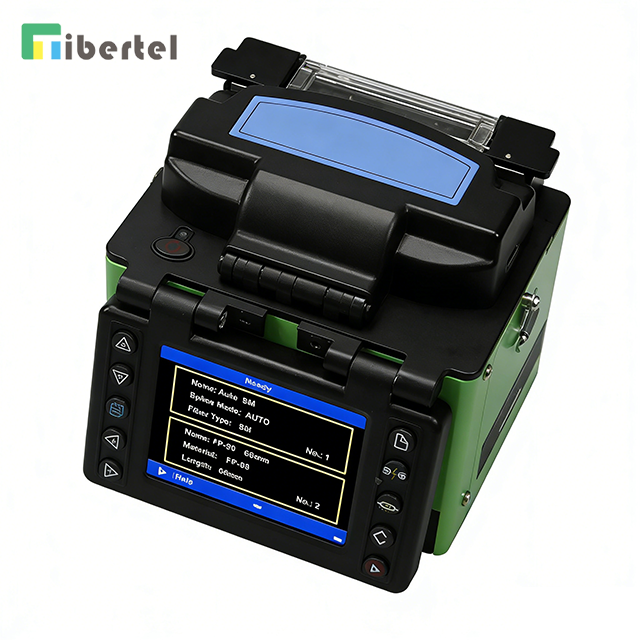

The TFS500 handheld optical fiber fusion splicer exclusively used in the hot splicing of the optical fiber connecting the user end of FTTX project as well as the manufacture of quick connector. The splicer uses high-speed image processing technology and special precision positioning technology, which can make the entire process of fiber splicing in nine seconds automatically. Large-screen LCD monitors make all stages of fiber splicing clear. It is small in shape, light in weight, and therefore is applicable for overhead work, work in confined space and field work. Its operation is simple, fusion speed is high, fusion loss is small, so it is particularly applicable to Optical Fiber Communication engineering and maintenance of communication fields such as telecommunications, broadcasting, railways, petrochemical, power supply, the armed forces, public security and other areas, and the teaching and research of research institutes.
Specification:
Applicable fibers | SM MM DS NZDS |
Fiber diameter | Cladding diameter:80-150μm;Coating diameter:100-1000μm |
Fiber aligning method | Meticulous,Core,Clad,Manual |
Actual average splice loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
Typical splicing time | Typical 9 sec (standard SM fiber) |
Tube typical heating time | Typical 30 sec |
Storage of splice result | 4000 results, 20 parameter per result |
Fiber image magnification | 200X (X or Y view),50X (X and Y view) |
Battery capacity | Typical 300 cycles (splice/tube heat with inner Li-battery) |
Monitor | 3.5 inch TFT color LCD monitor |
Power supply | AC 100-240V with AC adapter inner Li-battery (5200mAH) |
Dimension | 25mm(L)×105mm(W)×113mm(H) |
Fiber cleaved length | 8-16mm (Coating diameter:250μm) |
Fiber count | Single |
Return loss | ＞60dB |
Splicing mode | Auto Calibrate Normal Special |
Splicing program | 53 (templet), 40(user) |
Protection sleeve length | 60mm, 40mm |
Tube heating program | 9 (templet),24(user) |
Tension test | 2N |
Electrode life | 2500 |
Terminal | USB |
Operating condition | 0-5000m above sea level, -10-50°, Max wind velocity of 15m/s |
Weight | 1.55Kg including battery |
