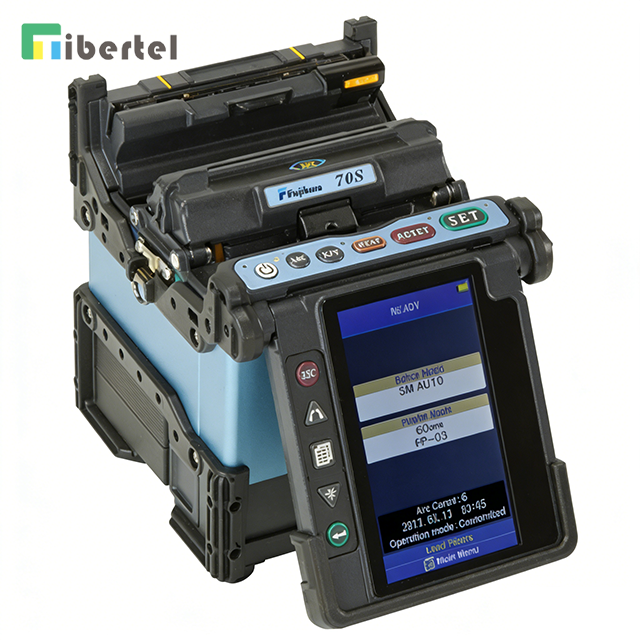

FSM-70S fiber optic fusion splicer
Home » Products » FTTx Solutions » Fiber optic fusion splicer » FSM-70S fiber optic fusion splicer
Share to:

FSM-70S fiber optic fusion splicer

Delivery Date: 7 days Brand Name: Fujikura
Model No.: FSM-70S Brand: Fujikura
Display screen: 4.73 TFT inch color LCD monitor Applicable fibers: SM, MM, DS, NZDS
Fiber count: single Splicing time: Typical 7 sec
Tube heating time: Typical 14 sec Dimensions: 146 x 159 x 150mm
Weight: 2.7kgs including battery without packing Origin: Japan

Fujikura Fusion Splicer FSM-70S

New model with better preformance



Model No.: FSM-70S

Brand Name: Fujikura

Cladding dia.: 80-150um

Splice mode / heating mode: total 100 splice modes / 30 heating modes

Attenuation splice function: intentional high splice loss of 0.1dB to 15dB(0.1dB step) can be made for an in-line fixed attenuator

Splice result storage: last 2000 splices

Size: 146 x 159 x 150mm

Weight: 2.7kgs including battery without packing)

Place of Origin: Japan

Application fibers: SM(G652 / G657), MM(G651), DS(G653), NZDS(G655)

Cleave length: 5mm to 16mm with sheath clamp

Splice loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS, NZDS)

Splice time: typical 7 sec with SM

Tube heating time: typical 14 sec with FP-03 (60mm) sleeve

Electrode life: 3000 splices




Sale points:

World's quickest splicing 7 sec.

Tube-heating 14 sec
Minimal manual operation

Splice in 4 steps



FSM-70S fusion splicer



Package of FSM-70S splicer:



Standard accessories of FSM-70S splicing machine:

Fujikura Fusion Splicer FSM-70S



Specification:

Fujikura Fusion Splicer FSM-70S, New and Updated model

World's quickest splicing 7 sec./ tube-heating 14 sec

Minimal manual operation, splice in 4 steps
Multi-functional carrying case with integrated work station.
Absolute robustness


Language support: English and multi-language


T&J can also provides Fujikura FSM-80S, FSM-19S, FSM-70R Ribbon Fiber Fusion Splicers.



FSM-70S fusion splicer
