Description

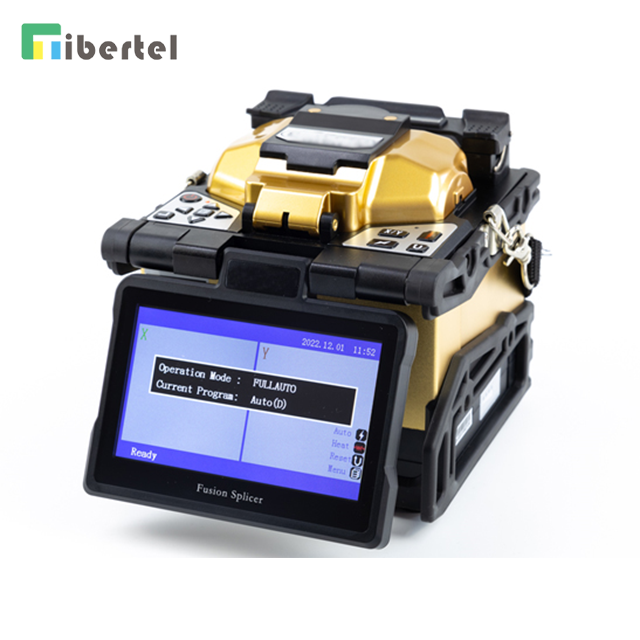

TJ01FST3X is latest model fusion splicer. It is with 6-motors, has better display views for fiber alignment. The SM/MM fiber identification function can identify the fiber mode and suggest to choose right splicing parameter.

Key Features

* 5 inches high resolution colorful LCD display, image can be turned according to position

* Average splice time: 8 seconds

* Average tube-heat time: 20 seconds

* Lithium battery: Rechargeable and up to 220 times of continuous splice and heat after fully charged

* X or Y axis separately views with 520 times magnification, or Simultaneously 340 times

* Cutting-edge technology for image processing

* New developed technology providing strong wind and dust resistance

* Splicing mode: Auto & Manual & Full-Auto

* USB Port

* Storing 10,000 groups of latest splice results

* New technology of fiber core alignment, enhanced accuracy

Fusion Splicer Optical fusion splicer Fiber Optic Splicer Fiber optic equipment

Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Fiber Diameter	Cladding: 80-150μm，Coating: 100-3000μm
Fiber Cleaved Length	5mm to 16mm
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical Splicing Time	8 seconds
Typical Heating Time	20 seconds
Splicing Program	50 groups
Protection Sleeve Length	40mm, 45mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish, Russian
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 15V, 5A output voltage(DC) Inner lithium battery: 11.1V, 6.0AH
Monitor	5 inches high resolution touch screen
Fiber Image Magnification	X or Y axis Separately views 520x times magnification, or Simultaneously 340x times
Storage of Splice Result	10,000 Splice, 100 images
Electrode Life	3,500 times
Splicing Model	Auto & Manual & Full Auto & intelligent
Dimensions	130(W)138(D)135(H)mm;
Weight	1.69kg without battery;
Fiber Identifier	Automatically identify SM or MM fiber

No.	Item	Quantity
1	Machine TJ01FST3X	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Quick Reference Guide and CD	1
9	Drop cable stripper	1
10	Carrying Case with Carrying Strap	1

Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Fiber Diameter	Cladding: 80-150μm，Coating: 100-3000μm
Fiber Cleaved Length	5mm to 16mm
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical Splicing Time	8 seconds
Typical Heating Time	20 seconds
Splicing Program	50 groups
Protection Sleeve Length	40mm, 45mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish, Russian
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 15V, 5A output voltage(DC) Inner lithium battery: 11.1V, 6.0AH
Monitor	5 inches high resolution touch screen
Fiber Image Magnification	X or Y axis Separately views 520x times magnification, or Simultaneously 340x times
Storage of Splice Result	10,000 Splice, 100 images
Electrode Life	3,500 times
Splicing Model	Auto & Manual & Full Auto & intelligent
Dimensions	130(W)138(D)135(H)mm;
Weight	1.69kg without battery;
Fiber Identifier	Automatically identify SM or MM fiber

No.	Item	Quantity
1	Machine TJ01FST3X	1
2	Fiber Cleaver	1
3	Fiber Stripper	1
4	AC Adaptor (Charger)	1
5	Battery	1
6	Spare Electrodes	1
7	Cooling Tray	1
8	Quick Reference Guide and CD	1
9	Drop cable stripper	1
10	Carrying Case with Carrying Strap	1
