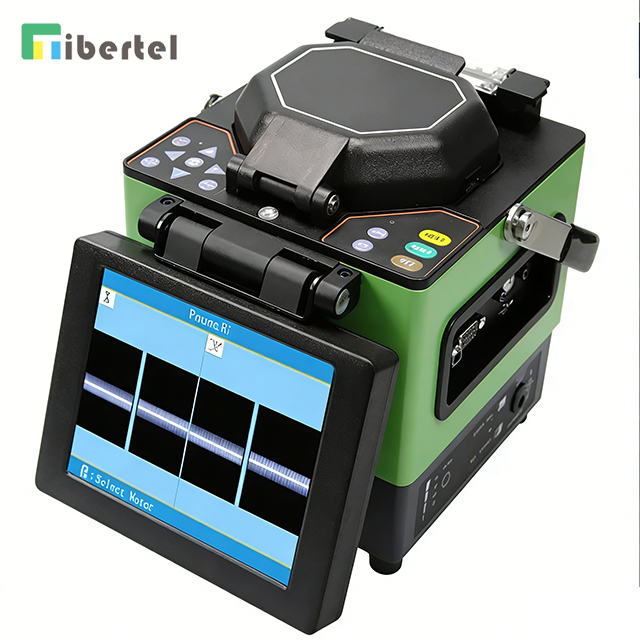

TFS280G Optical Fiber Fusion Splicer

 Core to core alignment by PAS technology (PAS:Profile Alignment System)

 Fiber core can be display clearly

 Single X or Y view and X & Y view simultaneously

 Auto check quality of cleaved end face

 Display fiber cleaved and offset angle

 5.6 inch TFT color LCD monitor with clear digital image display

 USB & VGA interface

 Software upgrade via USB interface



Specification:

Applicable fibers

SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)

Fiber cleaved length

8~16mm(Coating diameter: 250µm), 16mm(Coating diameter: 250 ~ 1000µm)

Fiber diameter

Cladding diameter: 80 ~150µm,    Coating diameter: 100~ 1000¦Ìm

Fiber Count

Single

Fiber aligning method

Core or clad aligning

Image processing method

Digital

Actual average splice loss

0.02dB£¨SM£©,   0.01dB (MM),  0.04dB (DS),   0.04dB( NZDS)

Splicing time

Typical 9 sec, with standard SM fiber

Splicing mode

53(templet), 40(user)

Splice loss estimate

More accurate

Return loss

>60dB

Storage of splice result

4000 results, 20 parameter per result

Fiber display and magnification

300X£¨X or Y view£©,150X£¨X and Y view£©

Tube heating time

Typical 30 sec

Tube heating mode

9(temp let), 24(user)

Tube heating temperature

Can be adjusted

Applicable Protection sleeve length

60mm, 40mm and a series of micro sleeves

Tension test

2N

Electrode life

2500

No .of splice/heating with battery

Typical 150 cycles (splice/tube heat) with inner Li-battery

Display screen

5.6 TFT inch color LCD monitor

Image change over

The fiber image is turned upside down

Terminals

USB 1.1 and VGA

Operating condition

0 ~ 5000m above sea level, 0 ~ 95%RH and -10¡«50¡æ, respectively, Max. wind velocity of 15m/s

Power supply

AC 100-240V with AC adapter; inner Li-battery(6600mAH)

Dimensions

150mm(L) x150mm (W) x150mm (H)

Weight

2.7 Kg excluding battery,3.2 Kg including battery
