Description:

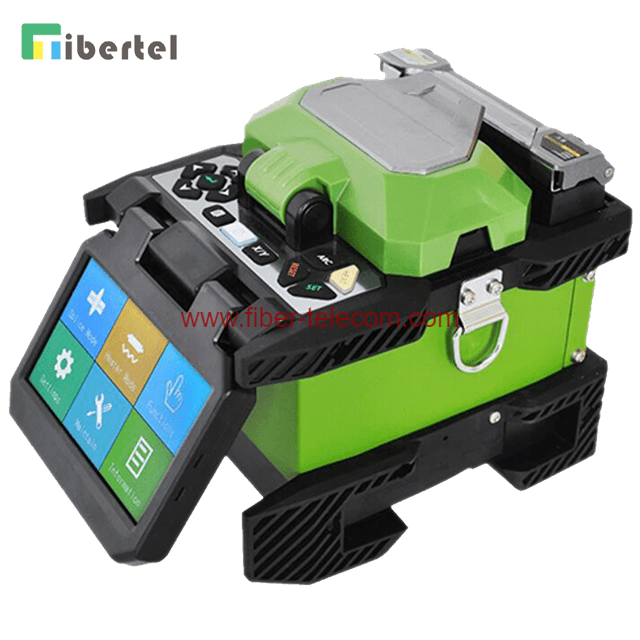

The Optical fusion splicer TJ01FS06S obtaining 16 patens of invention and 58 technical innovations, a brand-new product—TJ01FS06S Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.
TJ01FS06S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with TJ01FS06A, our start product, TJ01FS06S lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.
Main Characteristics:
* Precise fiber core alignment, ultra-low fiber fusion splicing consumption
* 7s fast fusion splicing, 18s highly efficient heating.
* 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
*300 groups of fusion splicing modes, 100 groups of heating modes
*10000 groups of fusion records, 64 images storage
* Ceramic presser foot, ceramic V-block, all-in-one fixture
* Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
Built-in modular lithium battery, supports 220 times of splicing and heating cycles.
Small and light
Small in size and light in weight, the splicer is easy to carry and can be lift by one hand.
Water-resistant, dust-resistant and shock-resistant in design
Water-resistant and dust-resistant can meet IP52 requirements.
The all-in-one fixture meet fusion splicing demands of multiple fibers, jumpers and rubber-insulted wires with a cladding diameter of 80～150μ m.
Graphical interfaces and touch screen
4106S uses entirely new GUI graphical interfaces and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.
Intelligent heat shrinkage
A detection unit is embedded in the heater. The heating function will only be enabled when the thermal shrinkage tube is put in the heater, to avoid misoperation
Large-capacity pluggable lithium battery
The built-in pluggable lithium battery with large capacity can answer working demand lasting all day long (typical 220 times of fusion splicing and heating cycles).
Ceramic V-block and ceramic presser foot
Ceramic V-block with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.
Multi-functional carrying case
The multi-functional carrying case is novel in design and light in weight, has built-in compact working bench.Open or close the cover can turn it to a working bench.
