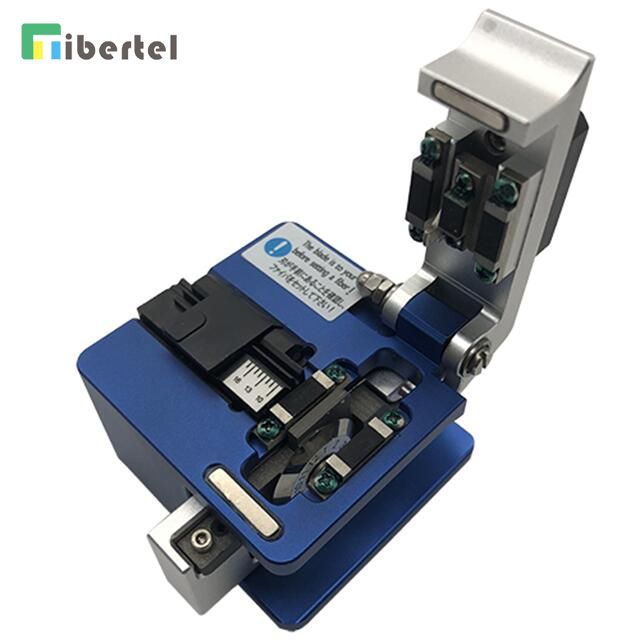

TJ01C201A (TFC21B) High Precision Fiber Cleaver is an Economy but High Precision China make cleaver with long blade life @0.5°≤15000 times, @1°≤20000 times
Usage and safety regulation:
Before using optical fiber cleaver, please read this manual carefully;
Be cautious to use cleaver in case harm;
Do not touch the blade with hand when use or repair optical fiber cleaver;
Do not take down or oil cleaver;
Keep optical fiber cleaver away from humid and dusty environment.
Technical specifications:
Applicable range | Single Core silex-fiber |
Coating Diameter | φ0.25mm ＆φ0.9mm |
Fiber Diameter | 125μm |
Cleave Length | 5~30mm |
Dimension | 62mm(W)*54mm(D)*55mm(H) |
Weight | 260g |
Cleaving Angle | 0.5° |
Blade Life | 0.5°≤15000 times, 1°≤20000 times |
