Delivery Date: | 3 days | Brand Name: | T&J |
---|---|---|---|

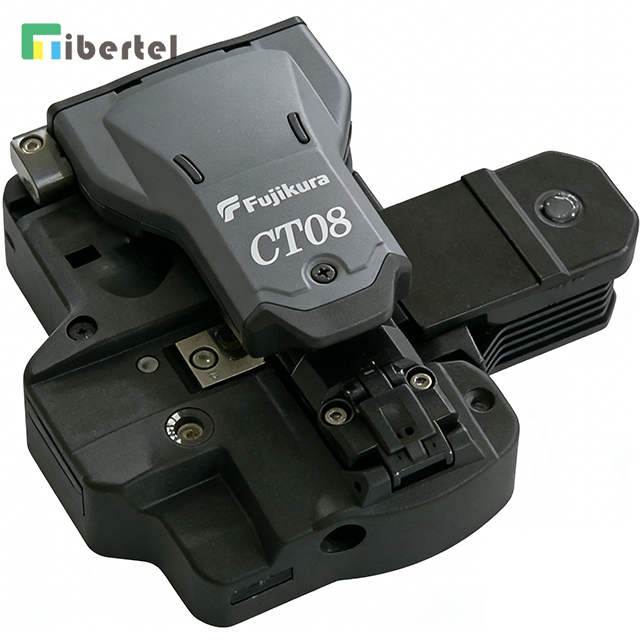

Model: | CT08 | Applicable range: | Glass optical fibers |
Coating Diameter: | φ0.16mm & φ0.9mm | Fiber Diameter: | 125μm |
Cleave Length: | 5~20mm | Dimension: | 110(W)×95(D)×45(H) mm |
Weight: | 185g | Cleaving Angle: | 0.5° |
Blade Life: | 0.5°≤15000 times, 1°≤20000 times, | Origin: | China |
Delivery Date: | 3 days | Brand Name: | T&J |
---|---|---|---|
Model: | CT08 | Applicable range: | Glass optical fibers |
Coating Diameter: | φ0.16mm & φ0.9mm | Fiber Diameter: | 125μm |
Cleave Length: | 5~20mm | Dimension: | 110(W)×95(D)×45(H) mm |
Weight: | 185g | Cleaving Angle: | 0.5° |
Blade Life: | 0.5°≤15000 times, 1°≤20000 times, | Origin: | China |
Dedicated for single fiber cleaving
High impact resistnace
Description | Model No. | Qty. |
Main body | CT08 | 1pc |
Fiber plate | AD-50 | 1pc |
Spacer | SPA-CT08-10 | 1pc |
Carrying case | CC-34 | 1pc |
Carrying case | HEX-01 | 1pc |
Instruction manual | M-CT08-EJ | 1pc |
Description | Model No. |
Fiber Plate | AD-10-M24 |
Blade | CB-07 (installed : 1pc) |
Arm set | ARM-CT-08-01 (installed : 1pc) |
Side cover | SC-CT08-01 |
Dedicated for single fiber cleaving
High impact resistnace
Description | Model No. | Qty. |
Main body | CT08 | 1pc |
Fiber plate | AD-50 | 1pc |
Spacer | SPA-CT08-10 | 1pc |
Carrying case | CC-34 | 1pc |
Carrying case | HEX-01 | 1pc |
Instruction manual | M-CT08-EJ | 1pc |
Description | Model No. |
Fiber Plate | AD-10-M24 |
Blade | CB-07 (installed : 1pc) |
Arm set | ARM-CT-08-01 (installed : 1pc) |
Side cover | SC-CT08-01 |
