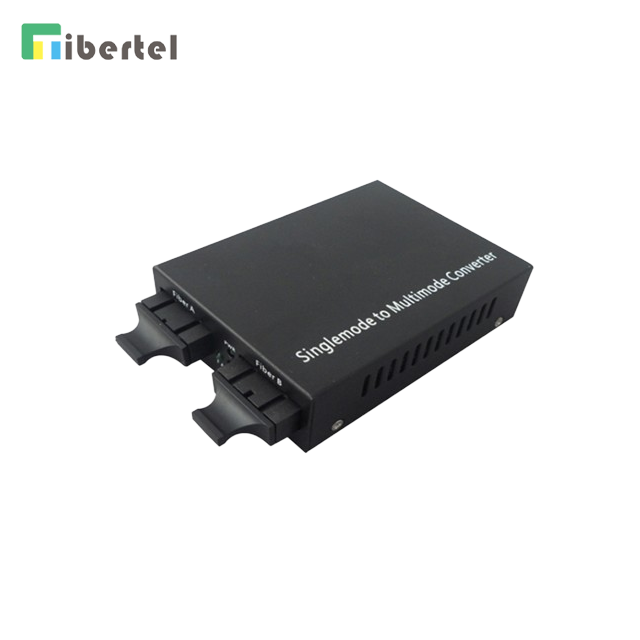

Single Mode to Multi-mode Media Convert TJ04SMC01

Description

The series mode converter Series mode converter is designed to meet the practical application of single-mode and multimode fiber hybrid cabling, which can convert and extend the transmission between 850nm, 1310nm multimode fiber and 1310nm, 1550nm single-mode fiber or single fiber and dual fiber . To achieve optical signals in the single-mode optical fiber and multimode fiber between the transparent transmission. The use of more accurate design of the circuit, dual photoelectric modules directly match the technology, the digital signal does not have any impact, with great versatility. Equipment provides a perfect working status detection indicator, easy to install and use. Supports multiple protocols such as Ethernet, Fast Ethernet, Gigabit Ethernet and 155M ATM. Single-mode environment, the farthest transmission distance up to 120 km.

Features

• Support full-duplex communication mode, plug-in card support hot-swap function;

• Support single fiber bi-directional transmission;

• To achieve Single-mode to multi-mode optical fiber media conversion or fiber optic relay function, the optional wavelength types are 850nm, 1310nm, 1550nm;

• Support 1000M Fast Ethernet, 1.25G ATM and SDH fiber media conversion / relay applications; 1000M multimode fiber maximum transmission distance of 550m or 1.5km, single mode optical fiber maximum transmission distance of 100km;

• High-quality optical transceiver module provides good optical and electrical characteristics to ensure reliable data transmission, long working life;

• 1.25G optical module transmission dynamic range of 25db or more;

• Adopting international advanced technology programs and high performance integrated chip, circuit layout science, stable work, stable data transmission, anti-interference ability, to avoid loop voltage, surge, inductive lightning strike, static electricity, hot swap damage equipment;

• Adopt advanced surface welding line processing and production, the module work is stable, data transmission is stable, anti-interference ability is strong;

• Support 2U rack-mounted installation, user-friendly installation options;

• MTBF is more than 50,000 hours, in line with carrier-class operating standards

Specification
