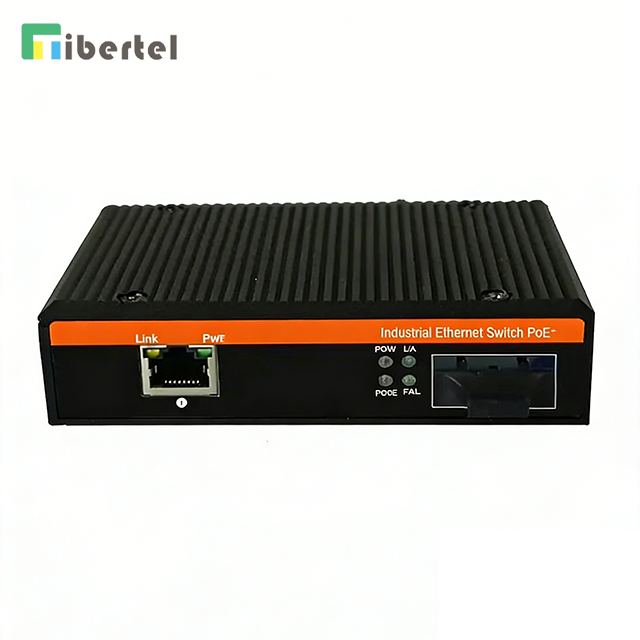

Name: Gigabit Industrial Ethernet Switch with 1 Port Fiber And 1 Port RJ45
Brand: Fibertel
Rating: 5.0 (11 reviews)

Gigabit Industrial Ethernet Switch with 1 Port Fiber And 1 Port RJ45

Home » Products » FTTx Solutions » Optical transmission » Gigabit Industrial Ethernet Switch with 1 Port Fiber And 1 Port RJ45

Item	1Fiber+1RJ45	1Fiber+2RJ45	1Fiber+4RJ45	1Fiber+8RJ45	2Fiber+8RJ45-
Fiber Port	SC	SC	SC	SFP	SFP
Voltage range	DC12-52V (Dual power supply redundancy)
Exchange capacity	4Gbps	6Gbps	10Gbps	18Gbps	20Gbps
Forward rate	3Mpps	4.5Mpps	7.44Mpps	13.4Mpps	14.88Mpps
POE power supply	Supported with high performance POE power supply IEEE802.3af/at standard 15.4W(16W)/25.5W(30W)
Standard	EMI: FCC part 15 subpart B class A, EN 55022 Class A Shock: IEC 60068-2-27 EMS: IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5, IEC(EN)61000-4-8
Dimension	1188633mm	1188633mm	1188633mm	14310347mm	14310347mm

Item	1Fiber+1RJ45	1Fiber+2RJ45	1Fiber+4RJ45	1Fiber+8RJ45	2Fiber+8RJ45-
Fiber Port	SC	SC	SC	SFP	SFP
Voltage range	DC12-52V (Dual power supply redundancy)
Exchange capacity	4Gbps	6Gbps	10Gbps	18Gbps	20Gbps
Forward rate	3Mpps	4.5Mpps	7.44Mpps	13.4Mpps	14.88Mpps
POE power supply	Supported with high performance POE power supply IEEE802.3af/at standard 15.4W(16W)/25.5W(30W)
Standard	EMI: FCC part 15 subpart B class A, EN 55022 Class A Shock: IEC 60068-2-27 EMS: IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT), IEC(EN)61000-4-5, IEC(EN)61000-4-8
Dimension	1188633mm	1188633mm	1188633mm	14310347mm	14310347mm
