Description

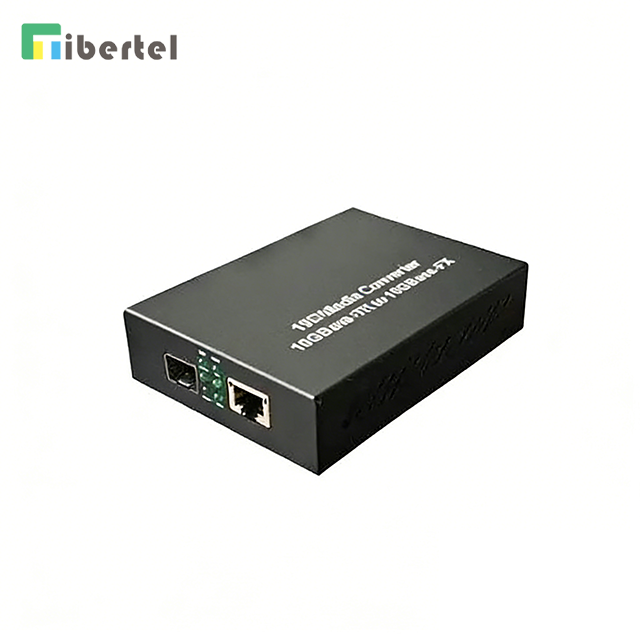

10G media converter is an Ethernet converter between Ethernet electrical signal and optical signal. It converts between short distance twisted pair signal of 10GBase-TX and 10GBase-FX optical signal. Customer can choose different SFP modules to achieve the smooth conversion and connection. It has one 10G fiber port and one RJ45 port. Except extending the transmission distance, there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Features
Adopts Marvell chip, which ensures non-blocking data transmission, security and stability
Supports 10G base－T to 10Gbase-SR/LR/ER/ZR on the Ethernet port
Support 3R (Balanced amplification, clock extraction, integral regeneration) function on the fiber port to ensure small data jitter.
Small latency on the data transmission.
Support various wavelengths including 850nm, 1310nm, 1550nm and CWDM/DWDM under ITUT rule.
Supports Jumbo Frame.
Specification
Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 10GBase-SX/LX | IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree |
Ethernet Port | Connector: RJ45 Data Rate: 10G Distance: 100m UTP Type: UTP-5E or higher level | |
Fiber Port | Connector: SFP slot Data Rate: 10Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Optical Fiber Type: Single mode 9/125μm; Multi mode 50/125μm、62.5/125μm Distance: 550m～100km | |
Performance | Processing Type: Store and Forward Transmission Mode: Full/half-duplex auto-adaptive MAC Table Size: 2K Buffer Space: 1Mbit Time Delay: ＜20μs | |
Power | Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V3A&12V Power Consumption: 0.75W～3W | |
Environment | Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) | |
Physical Characteristics | Dimension: 117×85×21mm Weight: 0.1kg Color: Metal, Black | |
Certifications | CE FCC, RoHS | |
