10/100/1000 Mbps Dual Fiber Media Converter
Home » Products » FTTx Solutions » Media converter » 10/100/1000 Mbps Dual Fiber Media Converter
Share to:

10/100/1000 Mbps Dual Fiber Media Converter

Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional

  • 10/100/1000Mbps
Delivery Date:7-working daysBrand Name:T&J
Band Width:RJ 45 Port: 10/100/1000Mbps;  Optical Port: 1.25GbpsOperation Mode:Full /Half duplex mode
Connectors:UTP: RJ-45;  Fiber connector: SC/ST/FCLED Indicators:POWER, FPL,10/100, FRX, TRX , FDX.
TP Cable:Cat5 UTP cable (the max distance up to 100m)Fiber Cable (SM):the max distance up to 20 -120km for SM
Fiber Cable (MM):the max distance up to 2km or 5km for MMMTBF (Hours):>50000
Gross Weight:0.4 -1.0kgsCertificate:FCC Part 15 , Class A, RoHS and CE Mark

Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional


FEATURES:

Provide one fiber connector and one UTP connector

Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard

Auto-detection of half/full duplex transfer mode for TX port

Auto-negotiation of 10/100/1000Mbpa rate and Auto-MDI/MDIX for TX port

Provide switch configuration of half/full duplex transfer mode for FX port

Extend fiber distance up to 2km for multi-mode fiber and 20-120km for single-mode fiber

Compacts size for easy installation and working with Media Chassis

Choice of fiber-connector from SC, LC and WDM, multi-mode / single-mode fiber for 1000Base SFP interface

Easy-to-view LED indicators provides status to easily monitor network activity Internal power supply

1000Base-SX: 50/125ìm or 62.5/125ìm multi-mode fiber cable, up to 220/500m

1000Base-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters

Back pressure flow control for full duplex IEEE802.3 X and half duplex.

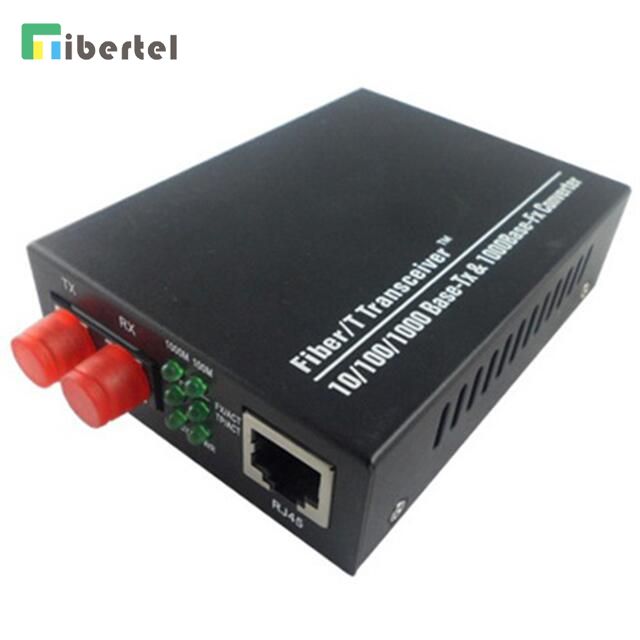

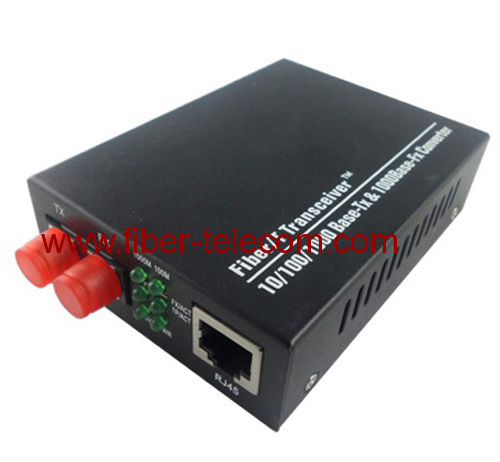

10/100/1000 Mbps Dual Fiber Media Converter with FC port

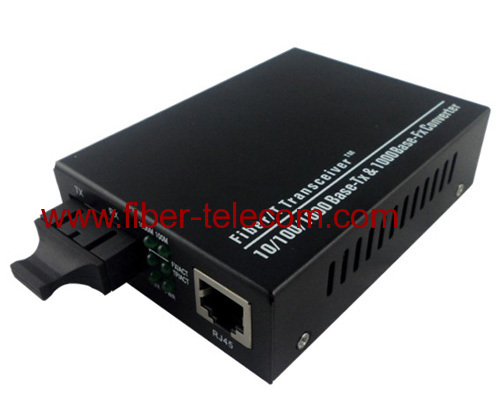

10/100/1000 Mbps Dual Fiber Media Converter with SC port

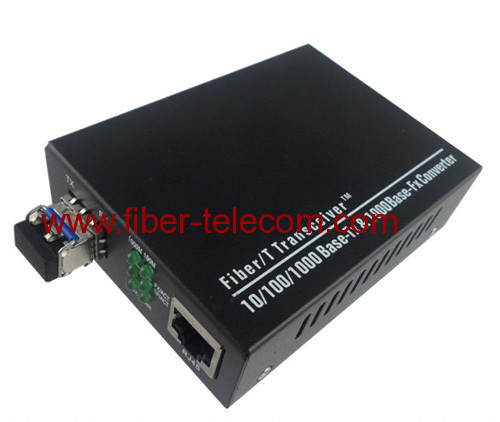

10/100/1000 Mbps Dual Fiber Media Converter with LC SFP port


Working Situations:

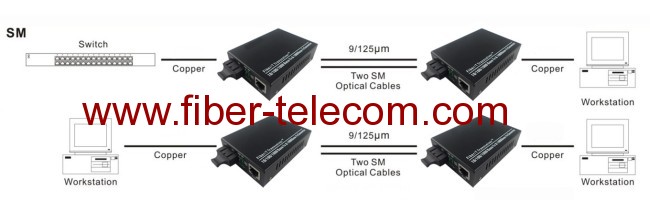

For Single mode

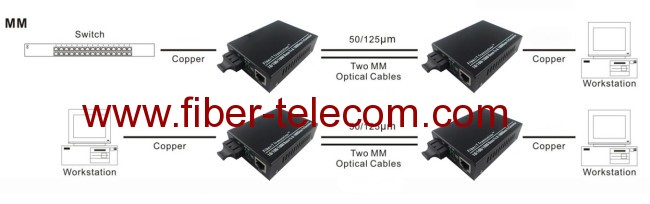

For Multi-mode


TECHINCAL SPECIFICATIONS

Standard Protocol

IEEE802.3 1000 Base-T standard

IEEE802.3u 10/100/1000Base-SX/TX standard

IEEE802.1q,   IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE 802.3z standard.

IEEE 802.3ab standard.

Band Width

RJ 45 Port: 10/100/1000Mbps

Optical Port: 1.25Gbps

Operation Mode

Full /Half duplex mode

Connectors

UTP: RJ-45

Fiber connector: SC/ST/FC/LC

Operation Mode

Full /Half duplex mode

LED Indicators

POWER, FPL,10/100, FRX,   TRX , FDX.

Power Supply

External

5V DC 2A

Internal

AC110-250V/50Hz

DC -32~-72V

Power Consumption

≤5W

Environmental Parameters

Work Temperature

0℃~50℃ (32 °F ~ 122 °F )

Storage Temperature

-40℃~70℃ (-40 °F ~ 158 °F )

Humidity

5%~90% non-condensing

TP Cable

Cat5 UTP cable (the max   distance up to 100m)

Fiber Cable

8. 3/125, 8. 7/125,   9/125, 10/125μm(the   max distance up to 20 -120km)

50/125, 62. 5/125μm(the max distance up to 2km or 5km)

MTBF (Hours)

>50000

Dimensions(mm)

External power supply

94mm*70mm*25mm     (3.7 *2.8*0.98 inch)

Internal power supply

140mm*110mm*30mm     (5.5 *4.3 *1.2 inch)

Socket Card

157mm*128mm*31mm     (6.2 *5.1   *1.2 inch)

Gross Weight

External power supply

0.4 kg

Internal power supply

0.8kg

Socket Card

1.0kg

Emission/Safety

FCC Part 15 , Class A, RoHS   and CE Mark

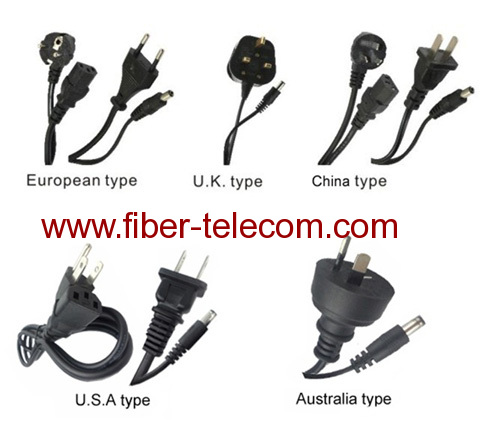

Plugs types supported:



Certifications:
