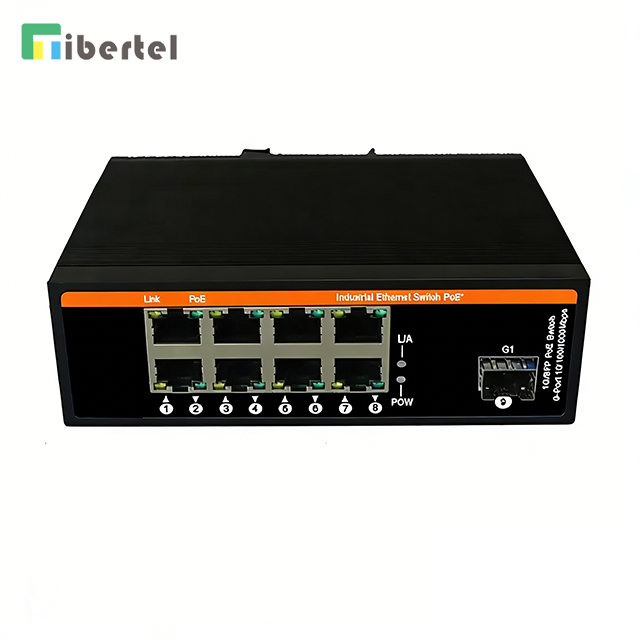

1*Fiber+8*RJ45
Fibertel
Description
The Industrial Ethernet Optical Switches support multiple 10 / 100Base-TX10 / 100 / 1000Base-TX electrical ports and multiple 100Base-X optical ports.
It has an operating temperature of -40℃ to +85℃, has a strong raggedness, and can adapt to various harsh environments, can also be conveniently placed in a compact control box. The installation characteristics of the guide rail are wide-temperature operation and have an IP40 protection rating of the casing and LED indicator lights.
It is a plug-and-play industrial-grade photoelectric conversion communication device.
Specification
Item | 1*Fiber+1*RJ45 | 1*Fiber+2*RJ45 | 1*Fiber+4*RJ45 | 1*Fiber+8*RJ45 | 2*Fiber+8*RJ45- |
Fiber Port | SC | SC | SC | SFP | SFP |
Voltage range | DC12-52V | ||||
Exchange capacity | 4Gbps | 6Gbps | 10Gbps | 18Gbps | 20Gbps |
Forward rate | 3Mpps | 4.5Mpps | 7.44Mpps | 13.4Mpps | 14.88Mpps |
POE power supply | Supported with high performance POE power supply | ||||
Standard | EMI: FCC part 15 subpart B class A, EN 55022 Class A Shock: IEC 60068-2-27 | ||||
Dimension | 118*86*33mm | 118*86*33mm | 118*86*33mm | 143*103*47mm | 143*103*47mm |
