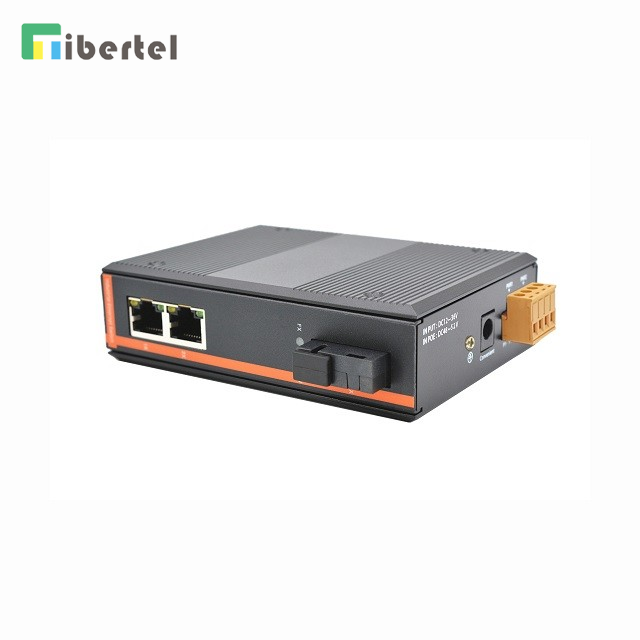

TJ101F2NS
Fibertel
Description
It has an operating temperature of -40℃ to +85℃, has a strong raggedness, and can adapt to various harsh environments, can also be conveniently placed in a compact control box. The installation characteristics of the guide rail are wide-temperature operation and have an IP40 protection rating of the casing and LED indicator lights.
It is a plug-and-play industrial-grade photoelectric conversion communication device.
Specification
| product name | Industrial grade 100Mbps 1 optical 2 electrical fiber optic switch |
| network protocol | IEEE802.3 IEEE802.3x IEEE802.3i |
| IEEE802.3z IEEE802.3u IEEE802.3ab | |
| Port characteristics | Two 10M/100M adaptive network electrical ports and one 155M fiber optic port |
| Network port characteristics | 10M/100MBaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
| Forwarding mode | Store and forward (full line speed) |
| backplane bandwidth | 2Gbps |
| packet forwarding rate | 1.4388Mpps |
| MAC address table | 2K |
| Packet forwarding cache | 1M |
| pilot lamp | PWR、FX、TX |
| Forward frame length | 64-1518 Byte |
| Electric port transmission distance | 10BASE-T ： Cat3,4,5 UTP(≤150 meter) |
| 100BASE-TX ： Cat5 or later UTP(120 meter) | |
| Optical port transmission distance | Multi mode dual fiber ≤ 500 meters; Single mode single fiber ≤ 3 kilometers -120 kilometers (customized) |
| Working temperature/humidity | -30~+80 ° C; 5% to 90% RH without condensation |
| Storage temperature/humidity | -40 to+85 ° C; 5% to 95% RH without condensation |
| ESD lightning protection | Air discharge: ± 30kV, contact discharge: ± 30kV |
| Input power voltage | Wide voltage design: supports DC12V2A~36V2A |
| Input power mode | Redundant power input, supporting 3 sets of power inputs simultaneously: power DC5521 head, 3.81 Phoenix terminal |
| Product size | 117mm*91mm*27mm（L*W*H） |
| Net weight/gross weight (kg) | 1.0Kg |
