Description

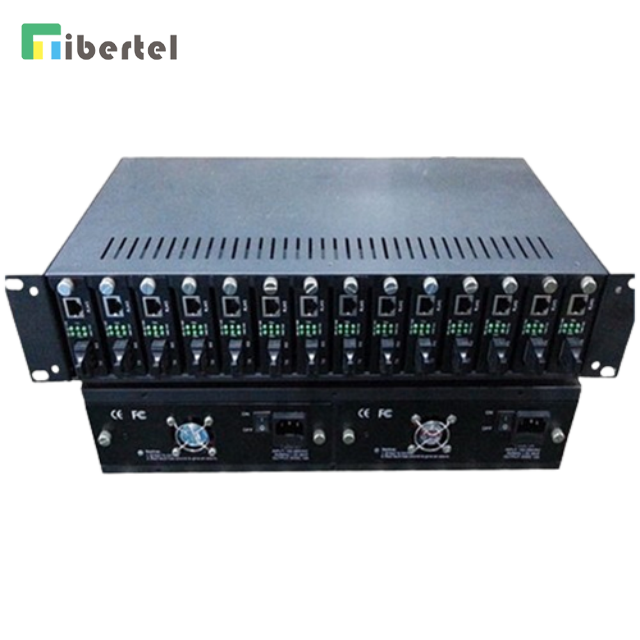

This Series 14-Slot Fiber Optic Transceiver Rack Chassis is a standard 2U19-inch, centrally-powered fiber optic transceiver system. This Rack Chassis equipped with the main and backup power supply; can be inserted 10/100M, 10/100/1000M series fiber optic transceiver modules and single-mode converter module and 1 fiber port & 1 RJ45 port fiber switch, and support for hot-swappable. The Media Converter chassis adopts communication isolation technology to separate the power supply from the transceiver module completely, to ensure the reliability of the whole system.
Features
The configuration of main and backup power supply ensures uninterrupted work of the system;
AC220V and DC-48V two kinds of power supply to make the system suitable for a variety of work environments;
Adopting modular power supply is easy to maintain and has good shielding effect;
Support multiple modules to work at the same time, greatly improving the system's applicability;
Each module supports hot swap function;
It is suitable for telecommunication, CATV, Ethernet optical fiber data centralization and network management;
Requiring high performance network security protection system;
The functional modules in the 16-slot rack are interchangeable with the structure of the plug-in built-in power supply products;
The chassis structure is designed with 2U standard, which can be easily installed on the rack of the engine room, and dual fan exhaust have good heat dissipation performance;
Meet the electromagnetic interference standard FCC Part15 Class A and CE Mark safety regulations.
Specification
Number of power supply | Dual power supply |
Color | Black or Silvery |
Power supply | Input voltage :AC 100 ~ 240V, 50~60Hz 3.0A(max); Or DC48V |
Output voltage:DC5V 12A(max) | |
Ripple voltage ≤ 50Mv | |
Noise ≤ 100Mv | |
Operating Temperature | -20℃ ~ +65℃ |
Storage Temperature | -40℃ ~ +85℃ |
Humidity | 5%~95% non-condensing |
Dimensions | 428mm* 230mm* 90mm (Standard 19-Inch, 2U height) |
Weight | 8kg |
