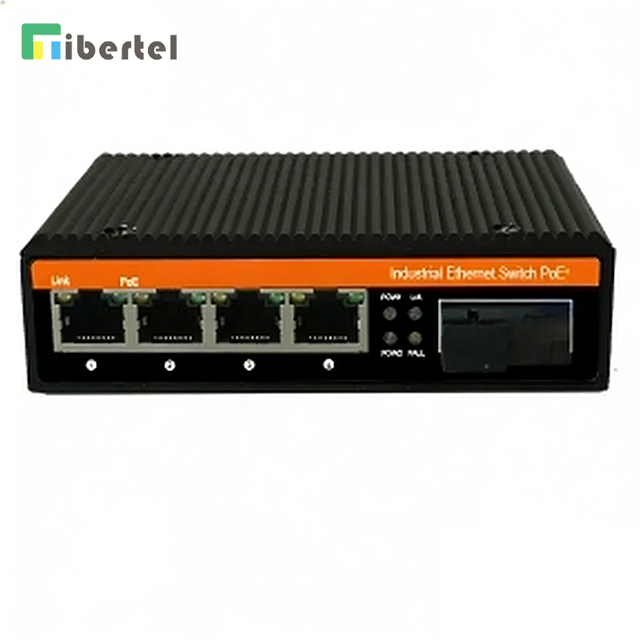

Gigabit Industrial Ethernet Switch with 1 Port Fiber And 4 Ports RJ45

The Industrial Ethernet Optical Switches support multiple 10 / 100Base-TX10 / 100 / 1000Base-TX electrical ports and multiple 100Base-X optical ports.
  • 1*Fiber+4*RJ45

  • Fibertel

Availability:

Description

The Industrial Ethernet Optical Switches support multiple 10 / 100Base-TX10 / 100 / 1000Base-TX electrical ports and multiple 100Base-X optical ports.

It has an operating temperature of -40℃ to +85℃, has a strong raggedness, and can adapt to various harsh environments, can also be conveniently placed in a compact control box. The installation characteristics of the guide rail are wide-temperature operation and have an IP40 protection rating of the casing and LED indicator lights.

It is a plug-and-play industrial-grade photoelectric conversion communication device.


Specification

Item

1*Fiber+1*RJ45

1*Fiber+2*RJ45

1*Fiber+4*RJ45

1*Fiber+8*RJ45

2*Fiber+8*RJ45-

Fiber Port

SC

SC

SC

SFP

SFP

Voltage range

DC12-52V
  (Dual power supply redundancy)

Exchange capacity

4Gbps

6Gbps

10Gbps

18Gbps

20Gbps

Forward rate

3Mpps

4.5Mpps

7.44Mpps

13.4Mpps

14.88Mpps

POE power supply

Supported   with high performance POE power supply
  IEEE802.3af/at standard 15.4W(16W)/25.5W(30W)

Standard

EMI:   FCC part 15 subpart B class A, EN 55022 Class A

Shock: IEC 60068-2-27
  EMS: IEC(EN)61000-4-2(ESD), IEC(EN)61000-4-3(RS), IEC(EN)61000-4-4(EFT),   IEC(EN)61000-4-5, IEC(EN)61000-4-8

Dimension

118*86*33mm

118*86*33mm

118*86*33mm

143*103*47mm

143*103*47mm
