10/100 Mbps Single Fiber Media Converter
Home » Products » FTTx Solutions » Media converter » 10/100 Mbps Single Fiber Media Converter
Share to:

10/100 Mbps Single Fiber Media Converter

10/100Mbps auto-negotiation Media Converter is the network communication device that realizing smooth network upgrade without any additional cost. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to 10Base-T, 100Base TX, 100Base-FX and IEEE 802.3x standards, and can connect with Person Computer, SERVER, HUB and SWITCH.

  • 10/100Mbps
Delivery Date:7-working daysBrand Name:T&J
Band Width:RJ 45 Port: 10/100Mbps;  Optical Port: 155MbpsOperation Mode:Full /Half duplex mode
Connectors:UTP: RJ-45;  Fiber connector: SC/ST/FCLED Indicators:POWER, FPL,10/100, FRX, TRX , FDX.
TP Cable:Cat5 UTP cable (the max distance up to 100m)Fiber Cable (SM):the max distance up to 20 -120km for SM
Fiber Cable (MM):the max distance up to 2km or 5km for MMMTBF (Hours):>50000
Gross Weight:0.4 -1.0kgsEmission/Safety:FCC Part 15 , Class A, RoHS and CE Mark

10/100Mbps auto-negotiation Media Converter is the network communication device that realizing smooth network upgrade without any additional cost. It is high-performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network. It completely conforms to 10Base-T, 100Base TX, 100Base-FX and IEEE 802.3x standards, and can connect with Person Computer, SERVER, HUB and SWITCH.

It can be set into full/half duplex auto-negotiation by manual, and it has two transmission mode: SM and MM, and its interface has many selectable optic fiber connectors and RJ-45 connector.


FEATURES:

Complies with IEEE 802.3 10 Base-T standard.

Complies with IEEE 802.3u 10/100 Base-TX/FX standard

Complies with IEEE 802.3X standard

10/100/ Mbps port with full/half duplex auto-negotiation

Back pressure flow control for full duplex

Twisted-pair connector: NODE/HUB or SWITCH (5 class UTP)

Back pressure flow control for full/half duplex IEEE802.3X

Automatic identification of MDI/MDI-X cross-line

High-performance 155Mbps memory bandwidth

Complies with FCC, 15 CLASS A ,RoHS and CE MARK


APPLICATION:

Apply to ready to rise to 10M extended enterprise network bandwidth 100M

Apply to images, voice and other multimedia data on an integrated transport network point

Applies to the computer signal transmission in need of the occasion widely used for computer data transmission network to meet a variety of business needs

Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer with the switches and other computer network equipment can be combined to form:-chain, star, ring-type network and other computer networks


Pictures:

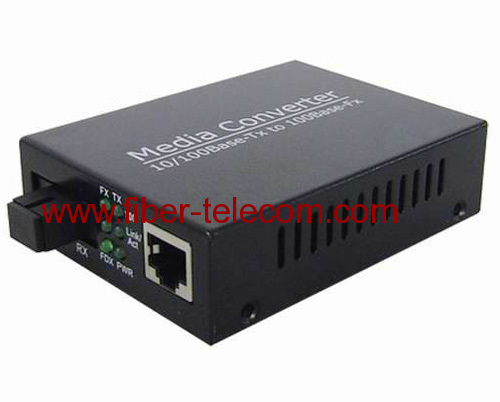

Fiber Port of SC adaptor supported, 10/100 Mbps Single Fiber Media Converter

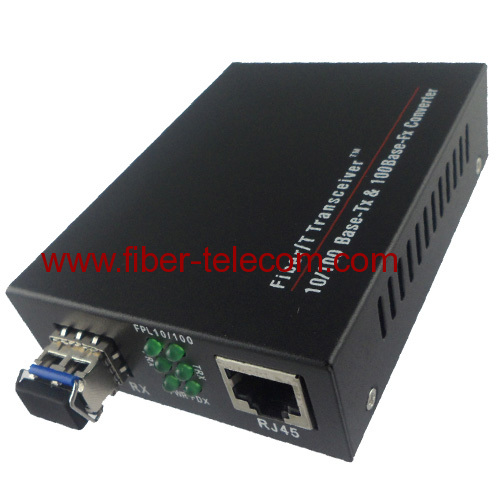

Fiber Port of SFP module (LC type) supported, 10/100 Mbps Single Fiber Media Converter

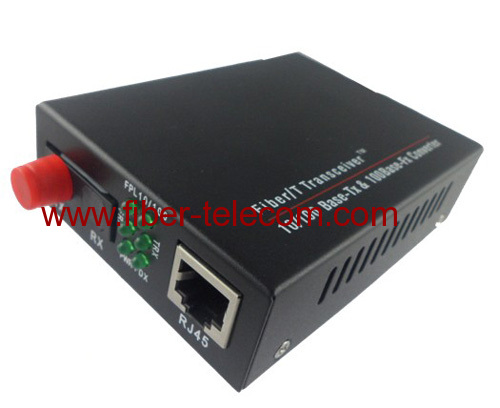

Fiber Port of FC adaptor supported, 10/100 Mbps Single Fiber Media Converter

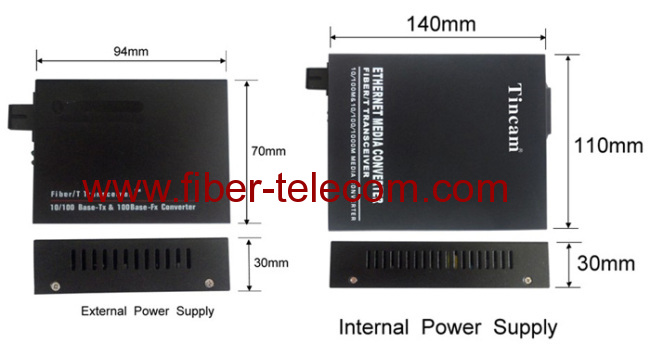

Dimensions of Single Fiber Media Converter

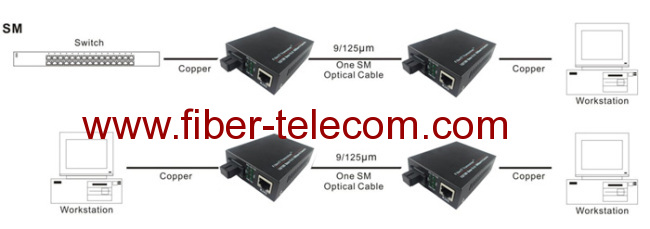

Working Situations of media converter



TECHINCAL SPECIFICATIONS:

Standard Protocol

IEEE802.3 10 Base-T   standard

IEEE802.3u   10/100Base-TX/FX standard

IEEE 802.3d standard.

IEEE 802.3Q standard.

Band Width

RJ 45 Port: 10/100Mbps

Optical Port: 155Mbps

Operation Mode

Full /Half duplex mode

Connectors

UTP:  RJ-45

Fiber connector: SC/ST/FC

Operation Mode

Full /Half duplex mode

LED Indicators

POWER, FPL,10/100, FRX,   TRX , FDX.

Power Supply

External

DC-48V,DC24V,DC12V,DC5V

Internal

AC110-250V/50Hz

DC -32~-72V

Power Consumption

≤5W

Environmental Parameters

Work Temperature

0℃~50℃ (32 °F ~ 122 °F )

Storage Temperature

-40℃~70℃ (-40 °F ~ 158 °F )

Humidity

5%~90% non-condensing

TP Cable

Cat5 UTP cable (the max   distance up to 100m)

Fiber Cable

8. 3/125, 8. 7/125,   9/125, 10/125μm(the   max distance up to 20 -120km)

50/125, 62. 5/125μm(the max distance up to 2km or 5km)

MTBF (Hours)

>50000

Dimensions(mm)

External power supply

94mm*70mm*25mm    (3.7 *2.8*0.98 inch)

Internal power supply

140mm*110mm*30mm (5.5 *4.3 *1.2 inch)

Socket Card

157mm*128mm*31mm (6.2 *5.1 *1.2 inch)

Gross Weight

External power supply

0.4 kg

Internal power supply

0.8kg

Socket Card

1.0kg

Emission/Safety

FCC Part 15 , Class A, RoHS   and CE Mark

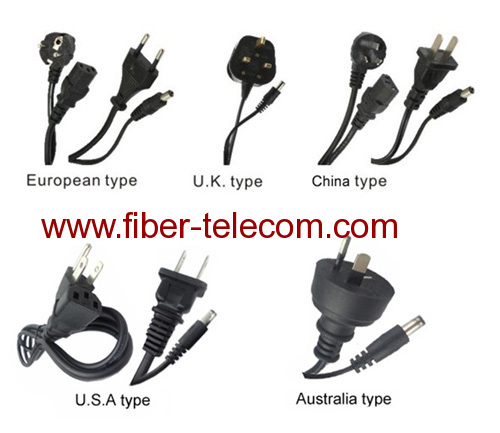

Plugs types supported:



Certifications:
