Description

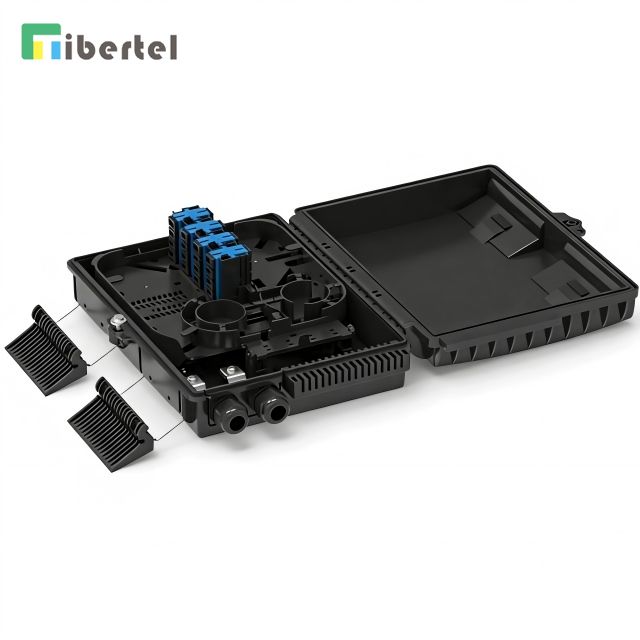

The TJ01E16DG Fiber Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features * Anti-UV (Ultraviolet)
* Total enclosed structure , Ingress protection grade: IP65
* Fiber optic Cables, pigtails, and drop cables are running through their own paths without disturbing each other, designed for insertion module type splitters , easy for maintenance.
* Distribution panel can be flipped down, feeder cable can be placed at the back of the inner box, easy for maintenance and installation.
* Box can be installed by wall-mounting or pole-mounting, suitable for both indoor and outdoor use.
Applications
* FTTH access network
* Telecommunication network
* CATV networks
* Data communications network
* Local area networks
Item | Description |
Product Name | Fiber Optic Terminal Box |
Part No. | TJ01E16DG |
Splice Capacity | 24 Cores |
Cable Ports | 2 Ports (For main cable) + 16 Ports (For drop cable) |
Material | PC+ABS |
Dimension | 260*215*95mm |
Weight | 0.88kgs |
Color | Grey/Black or on request |
Installation Methed | Wall-mounted or pole-mounted |
Relative Humidity | ≤85% (+30℃) |
Working Temperature | -40℃~+85℃ |
Atmospheric Pressure | 70KPa~106Kpa |
