Description

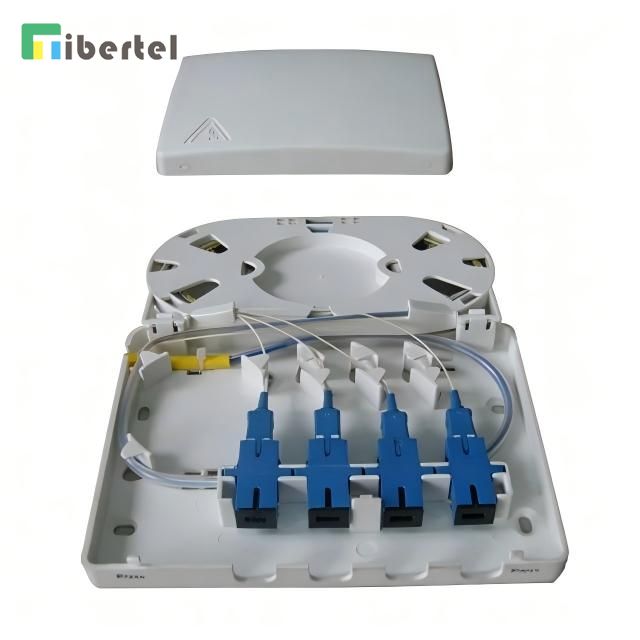

FTTH model of Fiber Optic Terminal Box is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH.
Features of the box
This box could be used for wall-mounted and rack-mounted applications;
The base and cover of the box adopts "self-clip" method, which is easy and convenient to open and close;
Could be used for adaptors such as SC,FC, etc;
The max capacity is 4 fibers;

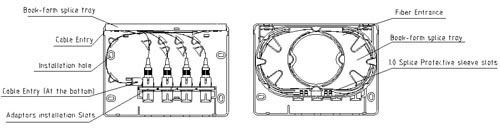

The fiber route and main components of the box
Main Technical Indexes
Environmental Temperature:－25℃～40℃;
Max capacity: 4 fibers;
Suitable types of fiber cables: 4 fibers indoor fiber cables;
Size of box:
2-fiber: 86*86*21mm
4-fiber: 150*110*30mm
