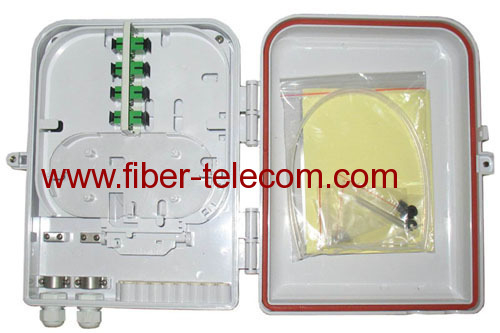

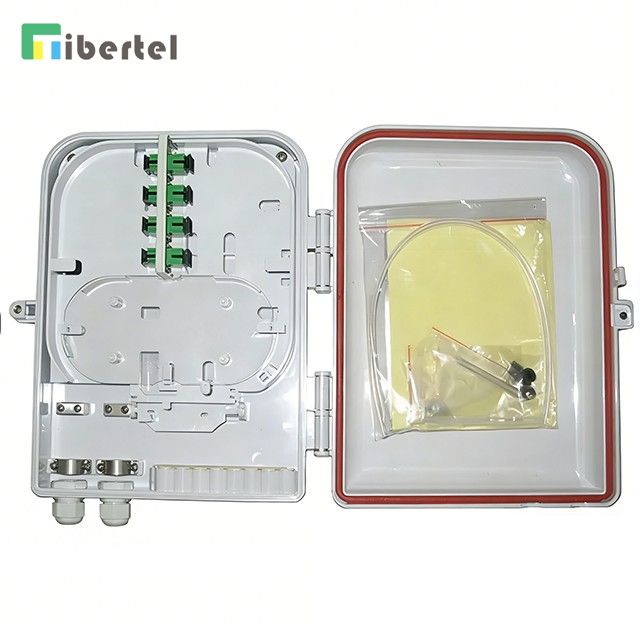

FTTH Outdoor Waterproof Terminal Box 16-core

  • TB01FTTH16

Availability:
Inquire Add to Basket

Product Attribute

Delivery Date:15-working daysBrand Name:T&J
Model:TB01FTTH16Max. capacity:16 fibers
Material of patch panel:Cold Rolled SteelColor:Black and ivory white
Application:FTTH outdoor installationAdaptor:SC, LC, FC, ST etc.
Environmental Temperature:-25℃~ +60℃Size:260*320*90mm
Lockable:YesOrigin:China

Feature

  • Industry Standard User Interface is made of Cold rolled steel

  • Can accommodate 1x4, 1x8, 1x16 & 1x32 PLC splitter.

  • Anti-UV, Ultra violet resistant and rainfall resistant.

  • Up to 32 FTTH drops.

  • Wall and pole mountable.

  • 2 inlet ports, 4~32 outlet ports.

  • The adaptors availble in SC, FC, LC, SC etc.


Application

  • Widely used in FTTH access network.

  • Telecommunication Networks

  • CATV Networks

  • Local Area Networks


Ordering Information:

Model

Capacity

Dimension

TB01FTTHT04

4 port

210*140*40mm

TB01FTTHT08

8 port

205*215*55mm

TB01FTTHT12

12 port

260*320*90mm

TB01FTTHT16

16 port

260*320*90mm

TB01FTTHT32

32 port

420*380*130mm
