TJ01E002A
Fibertel
Availability: | |
---|---|
Description

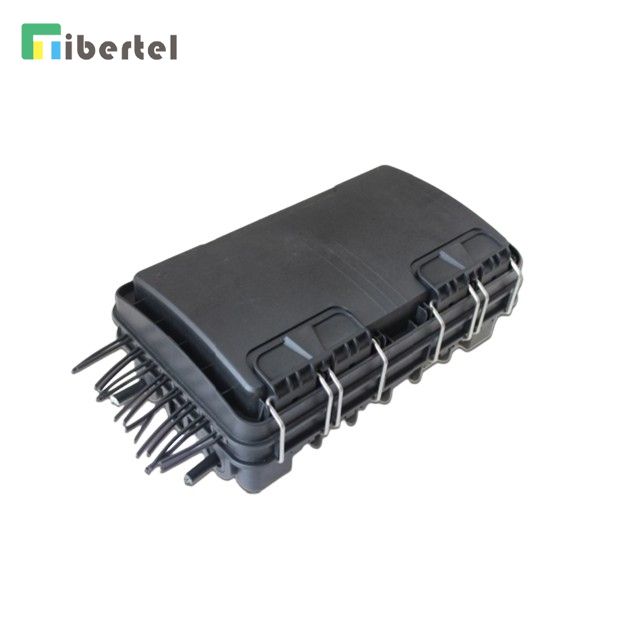

TJ01E002A series fiber access terminal closure is designed for aerial stand-mount FTTH drop location where drop cables are spliced to distribution cables. This product can keep internal components away from outdoor environmental damage. lts flexible configuration supports 3 cables in and 3 cables out. Steel tube type splitter can be built-in. Good performance is useful in harsh environment.
Features
* The closure casing is made of industrial plastic pp+GF.
* Outdoor application and good UV resistant.
* Double sided drop cable outlet, drop cable can lead in at both sides, easy to deploy.
* 18 adapters for patching, 2 for splitter inlets and 16 for outlets.3 layers structure, easy for future expansion and
maintenance.
* Buckle lock design for the easy access of aerial installation,
* 2 pcs of 1*8 or 1 pcs of 1*16 Splitter can be installed as an option.
* Support ADSS cable and self-support fiber cable.
* Protection grade: lP65.
* The application on NAP in the distributed split PON architecture.
Model | TJ01E002A |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black |
Material | PP+GF |
Adapter (SC) | 18pcs |
Max Splice | 24 Cores |
PLC Splitter | 2*1:8 or 1*1:16 Steel Tube Type |
Adapter Type | SC |
IP Grade | IP 65 |
Weight | 1.8kgs |
Size: H×W×D (mm) | 285*175*110mm |
Description
TJ01E002A series fiber access terminal closure is designed for aerial stand-mount FTTH drop location where drop cables are spliced to distribution cables. This product can keep internal components away from outdoor environmental damage. lts flexible configuration supports 3 cables in and 3 cables out. Steel tube type splitter can be built-in. Good performance is useful in harsh environment.
Features
* The closure casing is made of industrial plastic pp+GF.
* Outdoor application and good UV resistant.
* Double sided drop cable outlet, drop cable can lead in at both sides, easy to deploy.
* 18 adapters for patching, 2 for splitter inlets and 16 for outlets.3 layers structure, easy for future expansion and
maintenance.
* Buckle lock design for the easy access of aerial installation,
* 2 pcs of 1*8 or 1 pcs of 1*16 Splitter can be installed as an option.
* Support ADSS cable and self-support fiber cable.
* Protection grade: lP65.
* The application on NAP in the distributed split PON architecture.
Model | TJ01E002A |
Installation Method | Wall Mounted/Pole Mounted |
Color | Black |
Material | PP+GF |
Adapter (SC) | 18pcs |
Max Splice | 24 Cores |
PLC Splitter | 2*1:8 or 1*1:16 Steel Tube Type |
Adapter Type | SC |
IP Grade | IP 65 |
Weight | 1.8kgs |
Size: H×W×D (mm) | 285*175*110mm |
