Description
Due to the rapid development of the FTTH, it is going to be extend to FTTR which means The Fiber to the Room, all Optical Wi-Fi solution directly extends optical fibers to each room, achieving gigabit coverage everywhere at home or building. But in some specific scenarios, FTTR is relatively difficult to implement, such as the houses and offices which have been already decorated, it is supported with FTTH only, and so we need some external forces to help achieve the FTTR.

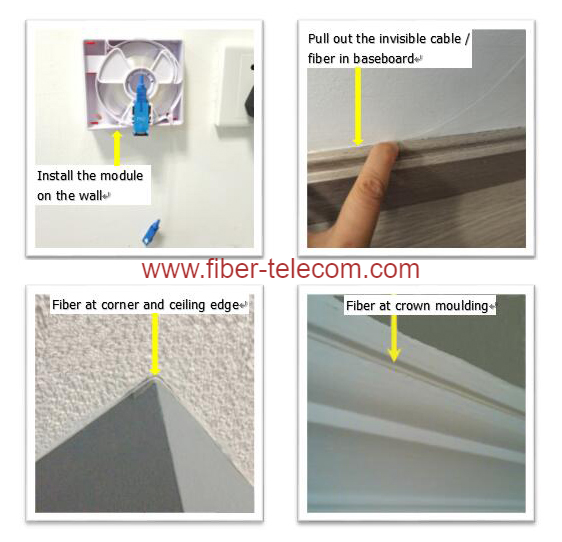

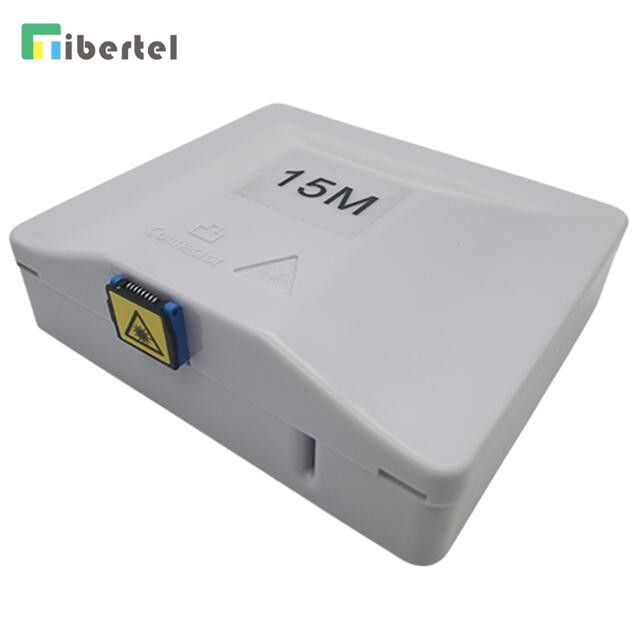

The Invisible Cable Pack is an extension way for the FTTH solution, offers virtually invisible and faster installation way to extend the FTTH drop cable inside of the house. This solution provides a complete in-building solution that can help accelerate the adoption of fiber optic service through faster and lower installation than traditional installation techniques with a virtually invisible result. These benefits can result in higher subscriber acceptance and take rates.
The plate with 3M transparent adhesive, so engineer or users can adhesive it on the wall easily.
Features
Virtually invisible and make house attractive
Easy installation and maintenance
Experience amazing fiber optic networks
Specification
Number of Fiber | 1 |
Type of Fiber | G.657A2 or G.657B3 |
Cable diameter | 0.9mm |
Cable length | 10, 15, 20, 25, 30, 35, 40mtrs |
Insertion Loss | ≤0.2dB |
Return Loss | ≥50dB |
Module dimension | 93x83x29mm |
Color of Module | White or on request |
OEM of Module | supported |
