TJ01E10HW
Fibertel
Availability: | |
---|---|
Product Description

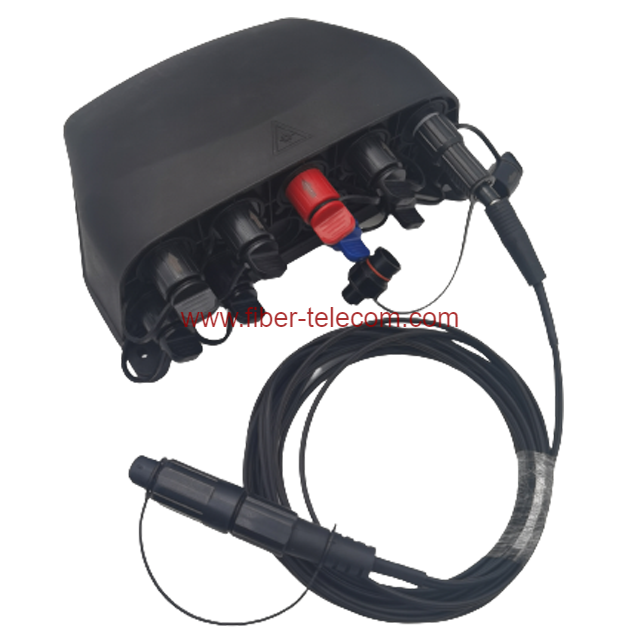

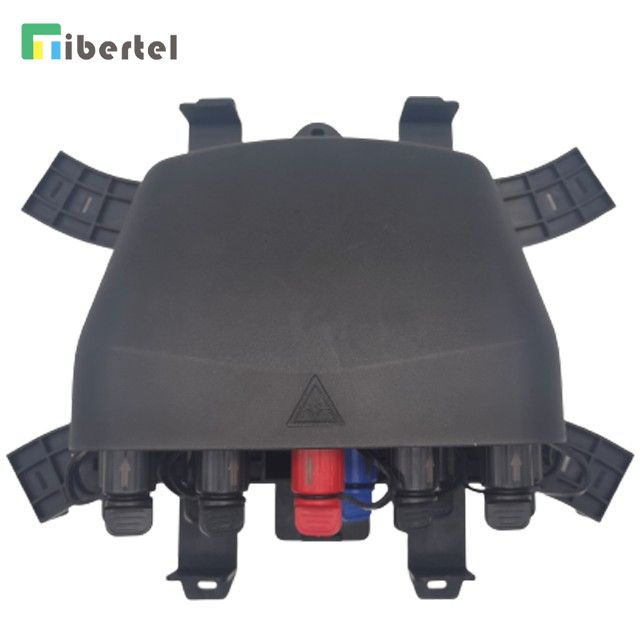

TJ01E10HW FAT distribution box for outdoor application, it designed for connected with two different waterproof adapters, Corning OptiTap or Huawei Mini SC/APC solution.
Fiber access terminal box (FAT) also named as optical termination box (OTB), is a compact fiber management box used for FTTH application. Fiber termination box (FTB) is widely used in FTTx cabling for both fiber cabling and cable management.

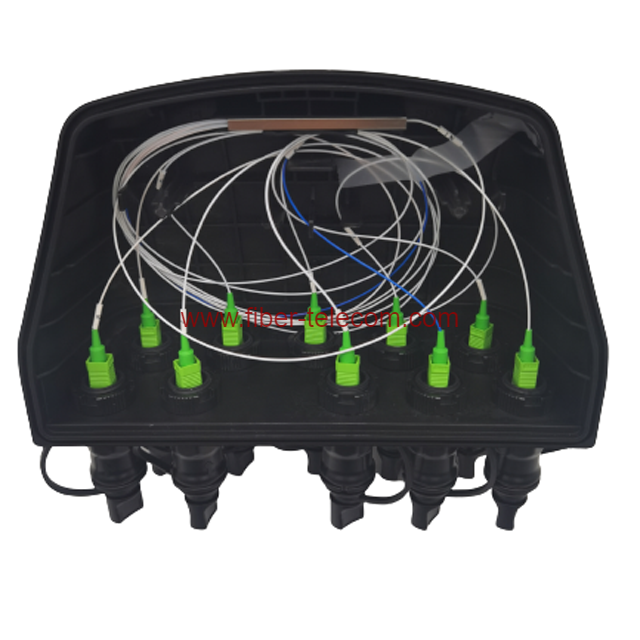

Fiber Access Terminal Box is a good design with strong robust ABS+PC materials for indoor and outdoor FTTx applications. FIBERTEL FAT terminal boxes provide mechanical protection for a fiber management systems that include the functions of patching, splicing, and passive optic components integration.
It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. Each Fiber distribution box has integrated strength member tie positions and bends radius protection with the addition of a removable front door allowing for quick and easy installation.
Application
1) FTTH;
2) FTTA;
3) Trunk Cable Connecting.
Features

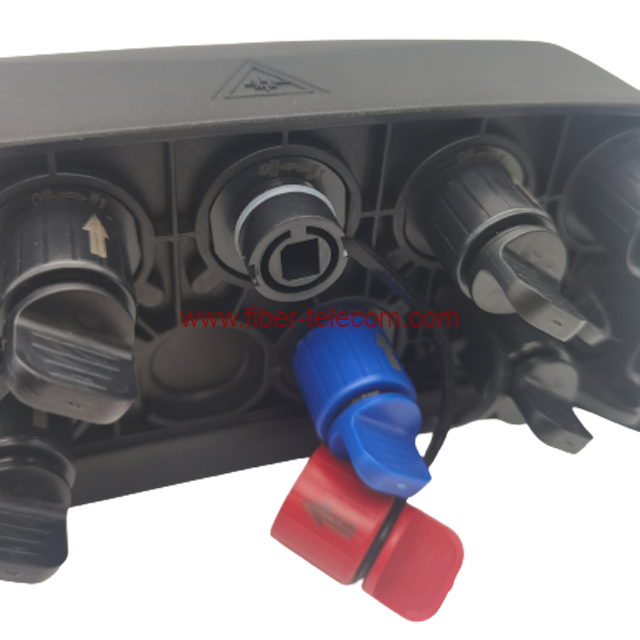

1) High compatibility: can be assembled SuperTap (OptiTap compatible), Fast SC connector, ODC, PTLC, PTMPO or power adapter;
2) Strong enough: working under 1000N pulling force long term;
3) From 2 to 16 ports for single or multi-fiber harsh connectors;
4) Available with PLC or splice sleeve for fiber divide;
5) IP68 waterproof rating;

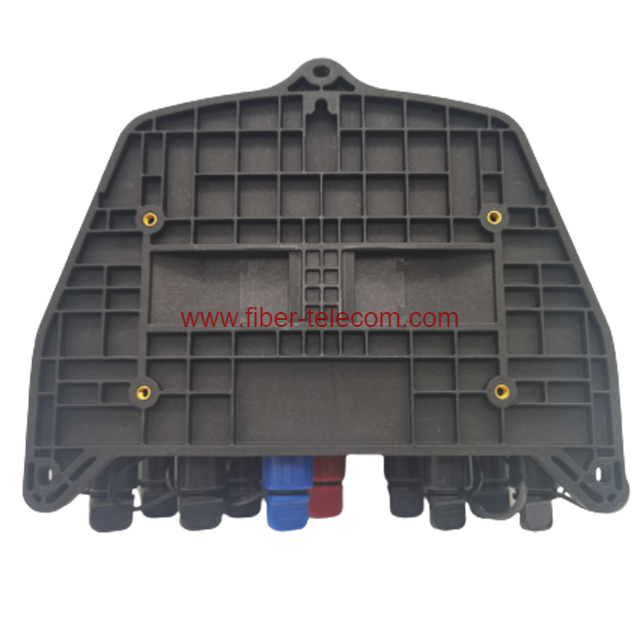

6) Wall-mounting, aerial installation or holding pole installation;
7) Decreased angle surface and height make sure no connector interfering when operating;
8) Cost effective: save 40% operating time.
Technical Parameter
Model | Total Value (dB) | 1X2 Coupler High Power (dB) | 1X2 Coupler + 1X8 PLC (dB) |
90/10 | ≤21.54 | ≤ 0.73 | ≤ (11.04+10.5) |
85/15 | ≤ 20.78 | ≤ 1.13 | ≤ (10.28+10.5) |
80/20 | ≤ 18.25 | ≤ 1.25 | ≤ (7.75+10.5) |
70/30 | ≤ 16.51 | ≤ 2.22 | ≤ (6.01+10.5) |
60/40 | ≤ 15.32 | ≤ 2.73 | ≤ (4.82+10.5) |
1:8 | ≤ 10.50 | ≤ N/A | ≤ 10.5 |
Specification
Part No. | TJ01E10HW |
Dimension (L x W x H) | 198 x 160 x 70mm |
Ingress protection | IP68 |
Cable strength member | Amoured or Non-armored |
Cable type | Hybrid or non-hybrid |
Input | 5.0mm to 14mm OD cable or adapter |
Input flat cable OD | 4.6mm x 8.9mm |
Cable crush resistance | 200N/cm long term |
Tensile strength | 1000N |
UV resistance | ISO 4892-3 |
Fire protection rating | UL94-V0 |
Number of PLC (Solution) | 1pcs 1:2 FBT & 1:8 PLC Splitter or 1pcs 1:8 PLC Splitter |
