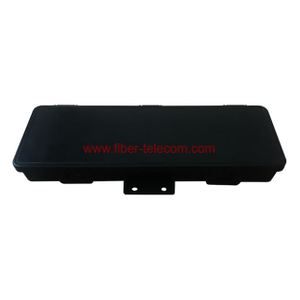

Fiber optic mini FTTH terminal box
Fiber optic FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system , especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
This FTTH Fiber Faceplate SC LC Optical Socket Panel is designed to splicing and termination between indoor SC LC fiber optic cable and pigtails. Mainly used for wall mounted type.
Features of the box
l Support termination, splicing and storage for fiber optic cable systems
l Compact structure and perfect fiber management
l Engineered fiber routing protect bend radius through the unit to ensure signal integrity
l A user end product to realize optical fiber to desktop solution.
l It can be used in home or working area to accomplish double-core fiber access and port output.
l Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
l Used in FTTH indoor application, home or work area
l Applicable for wall-mounted and compatible with flush mounted outlet
Fiber optic mini FTTH terminal box
Fiber optic FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system , especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected.
This FTTH Fiber Faceplate SC LC Optical Socket Panel is designed to splicing and termination between indoor SC LC fiber optic cable and pigtails. Mainly used for wall mounted type.
Features of the box
l Support termination, splicing and storage for fiber optic cable systems
l Compact structure and perfect fiber management
l Engineered fiber routing protect bend radius through the unit to ensure signal integrity
l A user end product to realize optical fiber to desktop solution.
l It can be used in home or working area to accomplish double-core fiber access and port output.
l Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
l Used in FTTH indoor application, home or work area
l Applicable for wall-mounted and compatible with flush mounted outlet
Product Parameter
Item | Description |
Part No. | TJ01E2A14 |
Function | Cable terminal |
Adaptor suitable | SC, FC, LC |
Max. Capacity | 4 Fibers |
Material | ABS |
Working Temperature | -40 +80℃ |

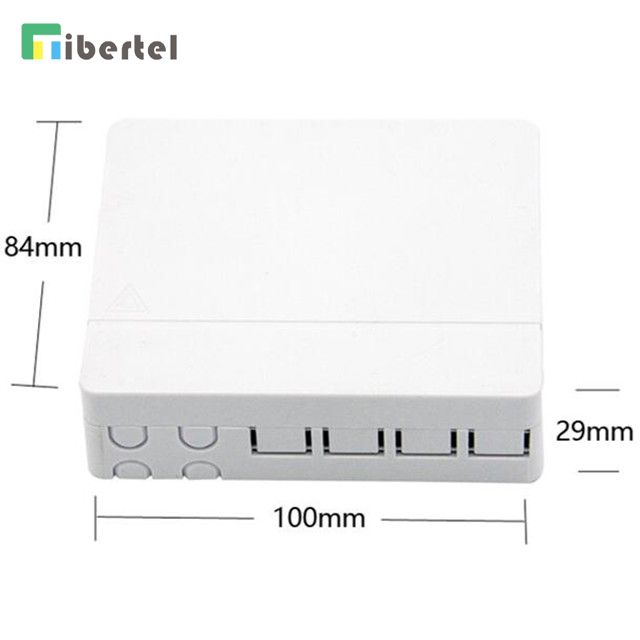

Dimension | 100*84*29mm |
Protection Grade | IP45 |
Product Parameter
Item | Description |
Part No. | TJ01E2A14 |
Function | Cable terminal |
Adaptor suitable | SC, FC, LC |
Max. Capacity | 4 Fibers |
Material | ABS |
Working Temperature | -40 +80℃ |
Dimension | 100*84*29mm |
Protection Grade | IP45 |
