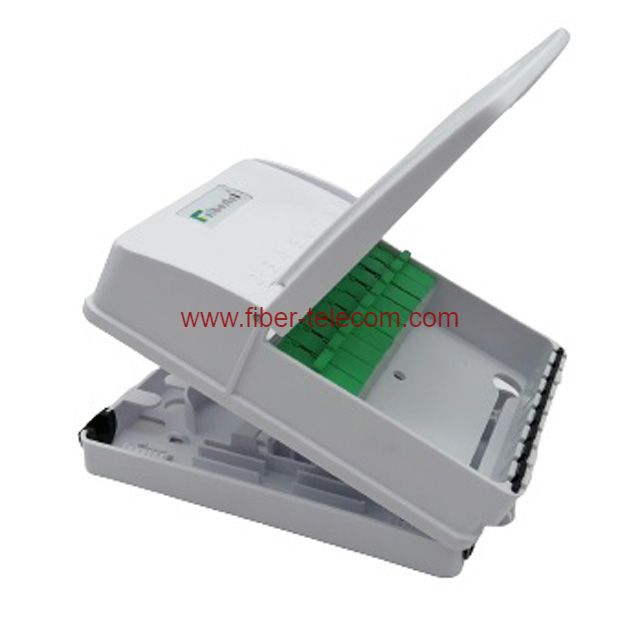

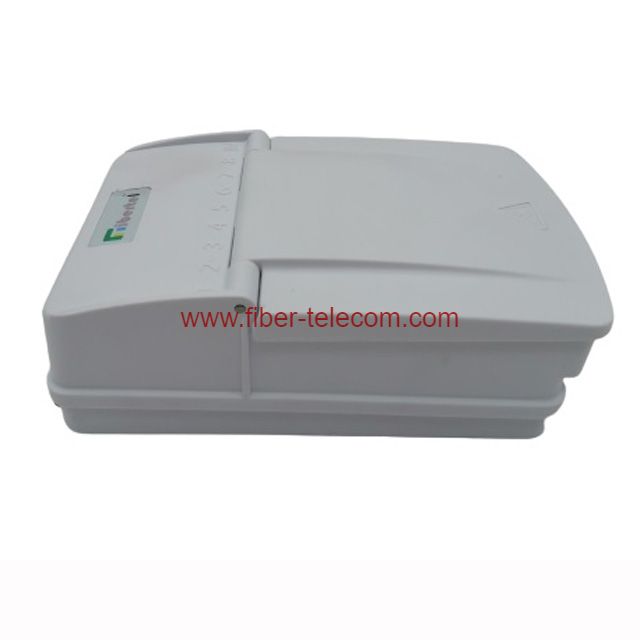

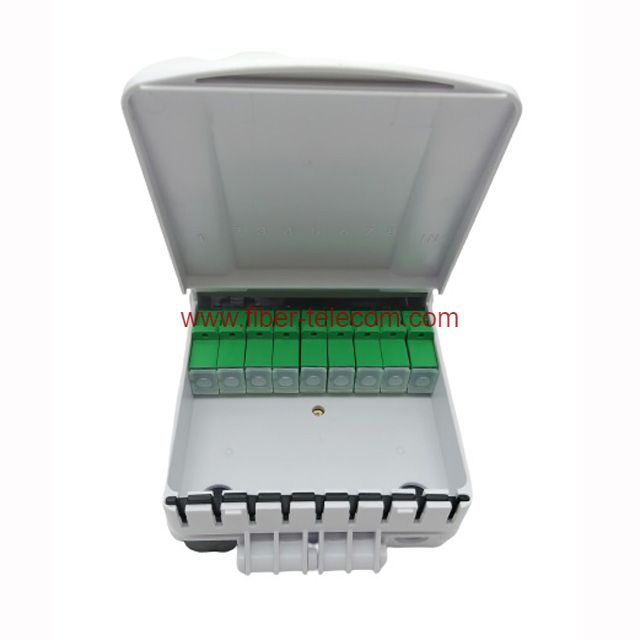

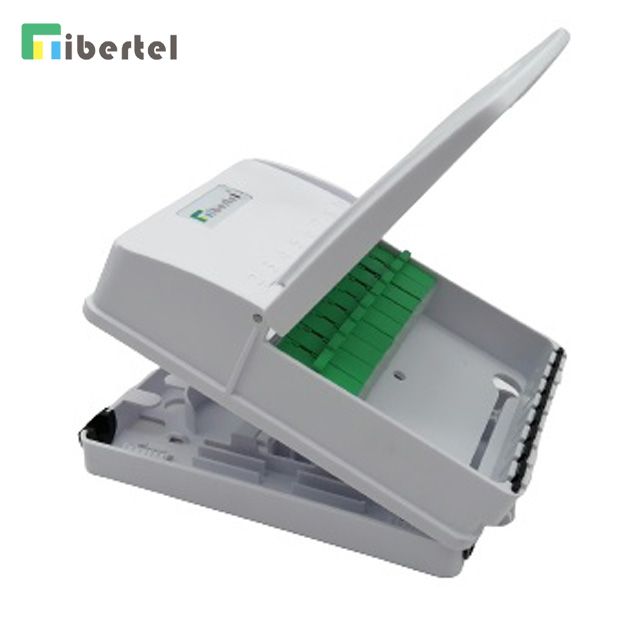

FTTH Internal Distribution Box 8cores TJ01EI08S

The FTTH internal distribution box 8cores is designed for the internal fiber distribution to the end-users by drop cables. Suitable for SC simplex and LC duplex adaptors.
  • TJ01EI08S

  • Fibertel

Availability:

Item

Description

Part No.

TJ01EI08S

Function

FTTH End-user Distribution

Adaptor suitable

SC, LC

Max. Capacity

8 Fibers

Dimension

148*94*40mm

Weight

190g

Material

ABS

Working Temperature

-40 +80℃

Protection Grade

IP45


Description

The FTTH internal distribution box 8cores is designed for the internal fiber distribution to the end-users by drop cables. Suitable for SC simplex and LC duplex adaptors.



Features

  • Support termination, splicing and storage for fiber optic cable systems

  • Compact structure and perfect fiber management

  • Engineered fiber routing protect bend radius through the unit to ensure signal integrity

  •  A user end product to realize optical fiber to desktop solution.

  • It can be used in home or working area to accomplish 8-core fiber access and port output.

  • Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

  • Used in FTTH indoor application, home or work area

  • Applicable for wall-mounted installation.
